Curtain Series

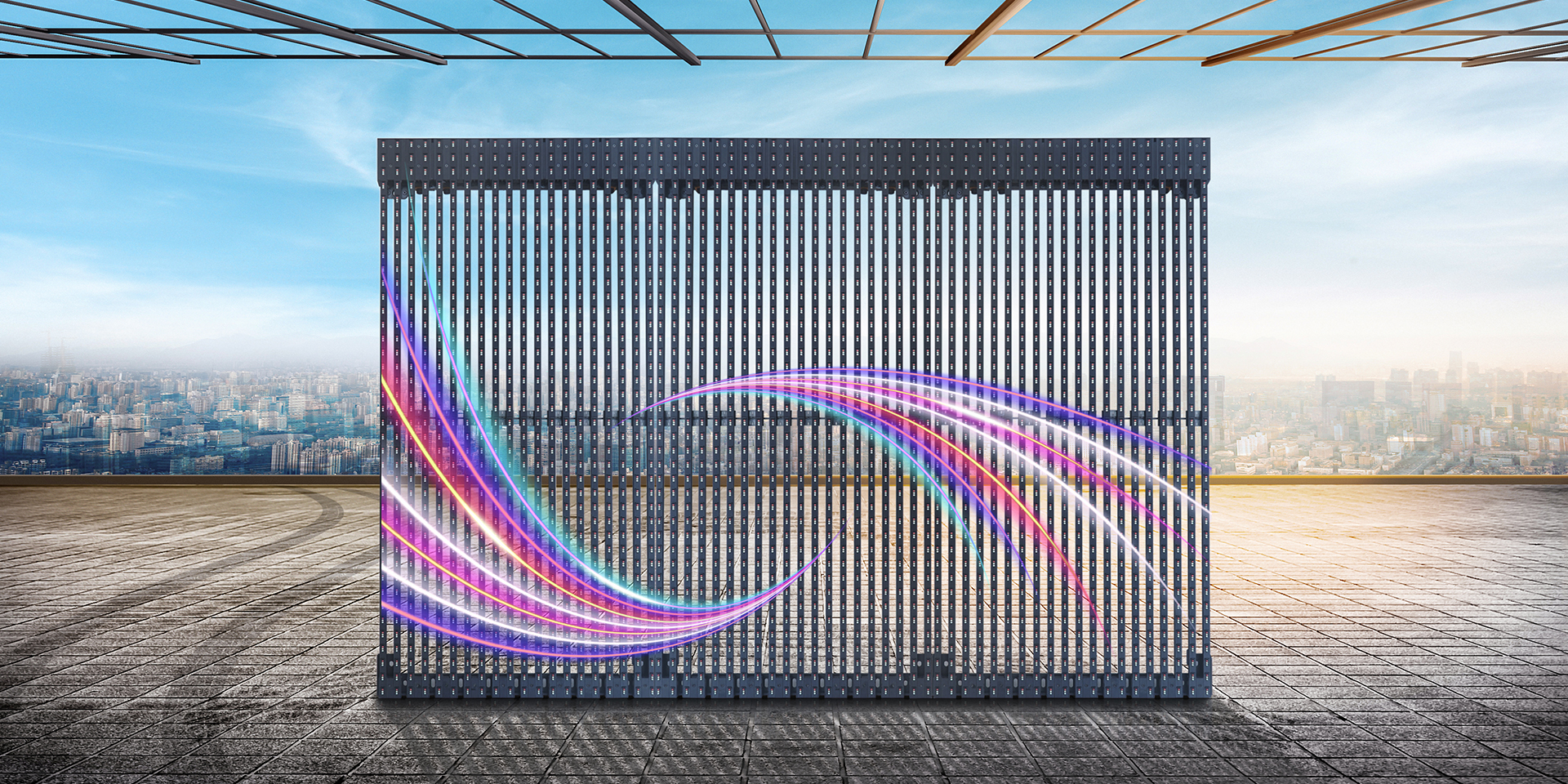

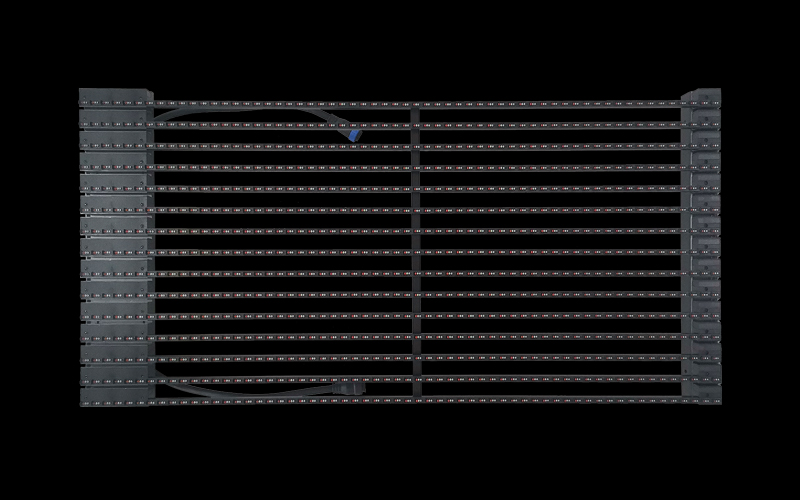

The LED curtain screen is a grid-like display made up of LED light beads. It usually consists of many small LED modules that can be combined together to form a large screen for displaying images, videos and other multimedia content.The LED grid screen usually has high brightness and clarity, energy saving and environmental protection, modular design and other features and advantages.It is extremely valuable led outdoor signs for business.

Stable, energy-saving and environmentally friendly
The LED grille screen reduces the number of light bar connections and improves the stability of the product through unique electronic circuit design. In addition, the integrated design of control box and installation structure makes the whole system more stable. Moreover, the LED grille screen has lower energy consumption and longer service life, in line with the requirements of energy saving and environmental protection.
Good light transmission
The skeletonized design of LED grille screen ensures the light transmittance around it, which can ensure the light demand of the building while displaying the content. In addition, the LED grille screen adopts a small number of components, which can be conveniently affixed to the wall without damaging the wall and foundation. At the same time, it has a good automatic cooling system, no need to add air conditioning cooling.
Light weight and small wind load
Compared with the traditional LED display, the LED grille screen is 60%-80% lighter, greatly reducing the strength and weight of the display infrastructure, especially suitable for oversized LED display. At the same time, LED grille screen permeability of 40% -50%, with strong wind resistance, effectively reducing the strength and weight of the LED display infrastructure.
Wide range of applications

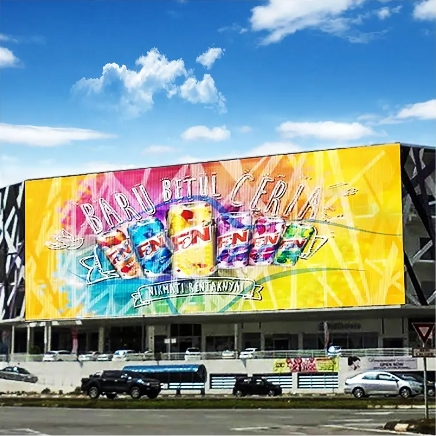

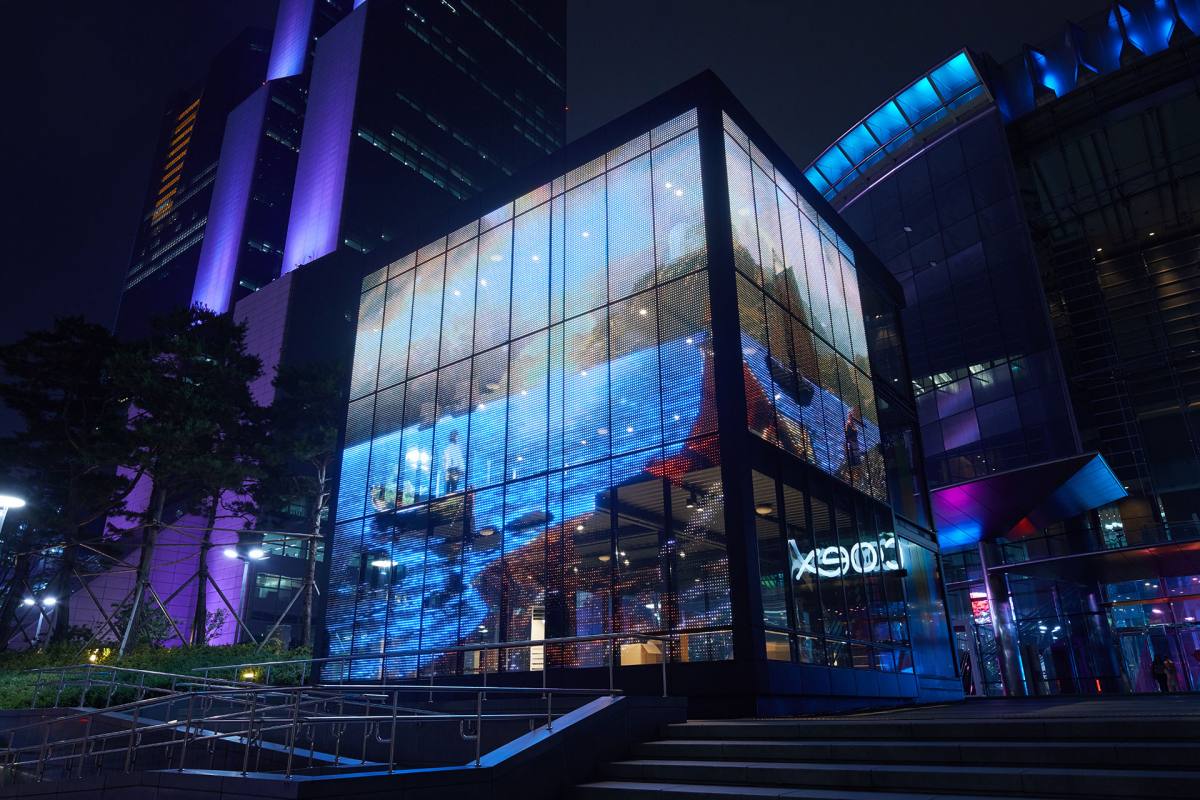

The LED grille screen has a wide range of applications in many fields due to its features and advantages, including building facade advertisements, stage performances, commercial centers and shopping malls, etc., which provides high-quality and high-efficiency display solutions for various fields.

Parameter

TGC Series	TGC3.9	TGC7.8	TGC10
LED	SMD1921	SMD1921	SMD1921
Resolution(dot/㎡)	32768	16384	9216
Pixel Pitch(WxH)(mm)	3.91x7.82	7.82x7 82	10.42x10.42
Module size(WxH)(mm)	1000x500	1000x500	1000x500
Module Resolution	256x64	128x64	96x48
Brightness(nits)	5500	5300	5000
Max.Power(W/㎡)	800	780	750
Avg.Power(W/㎡)	240	230	220
Transparency	70%	80%	87%
