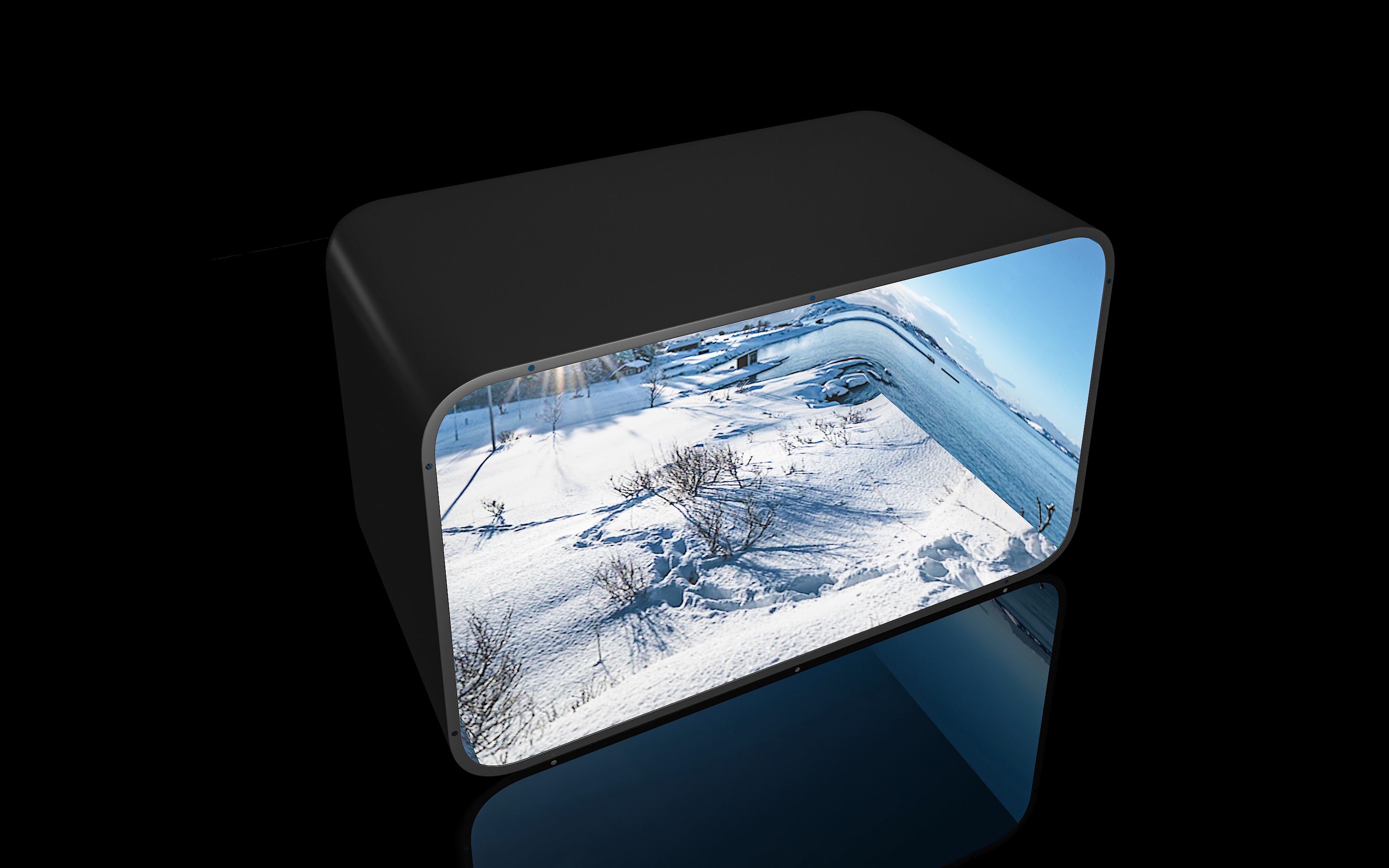

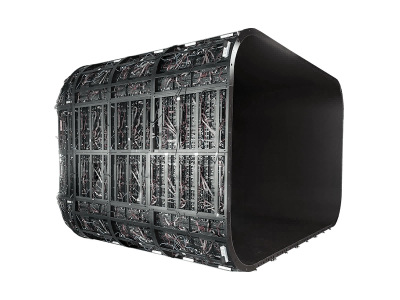

LED immersive display

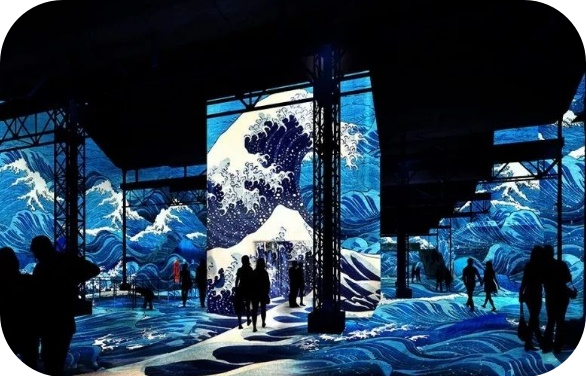

In recent years, the addition of VR, AR, XR and other technologies has injected new vitality into LED displays. Immersive LED display combines high-quality LED display equipment with VR and naked eye 3D technology. It is a unique creative LED display and interactive display . Various industries have also turned their attention to LED immersive displays.

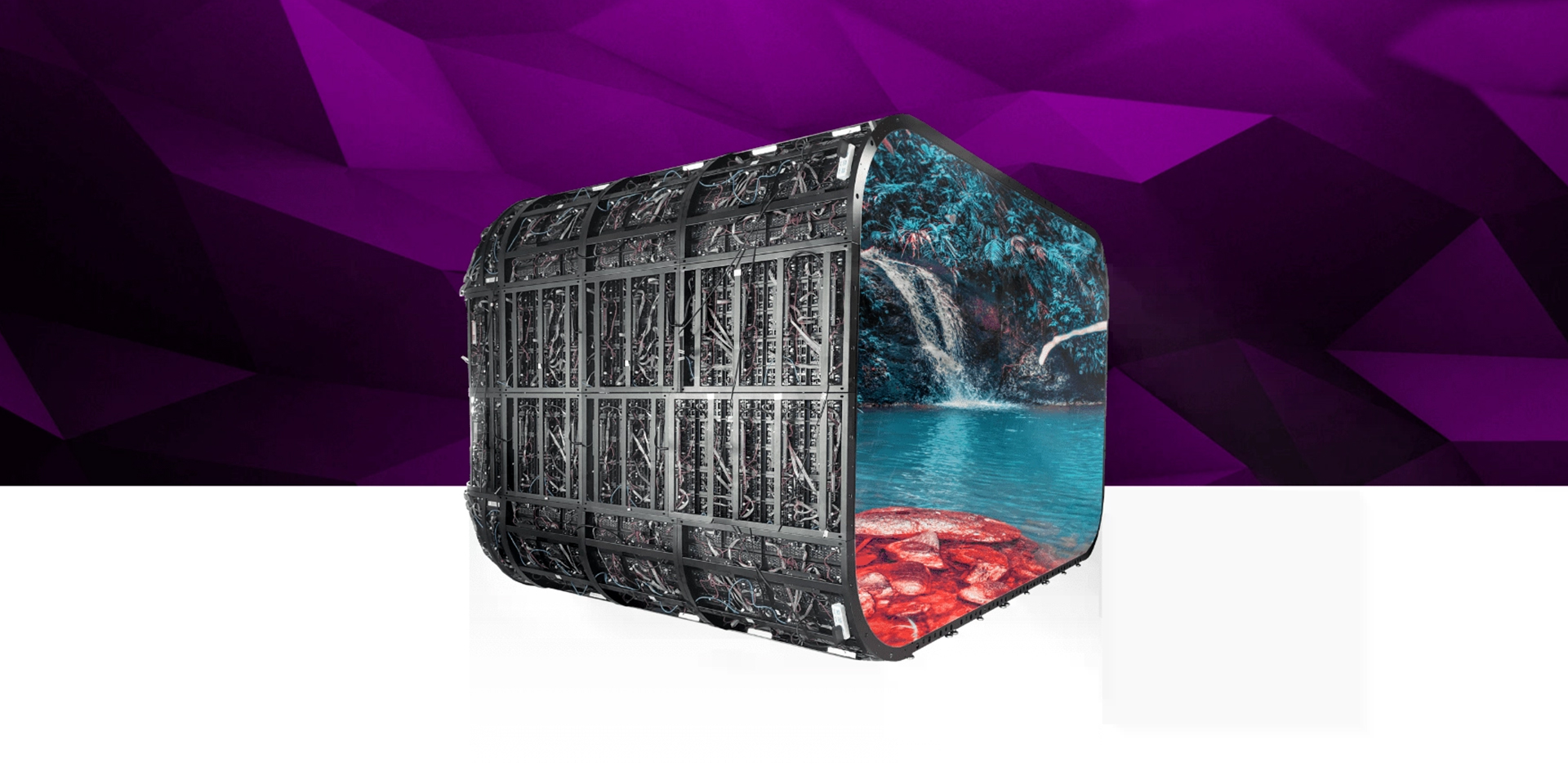

Beyond traditional modular design
Immersive spaces require large and high-definition flat screens, and flexible LED displays feature a modular design that transcends tradition. Its ability to be flexibly assembled allows it to easily adapt to the needs of immersive scenes, creating a wide field of view and a large screen area, thus creating a more stunning immersive effect.

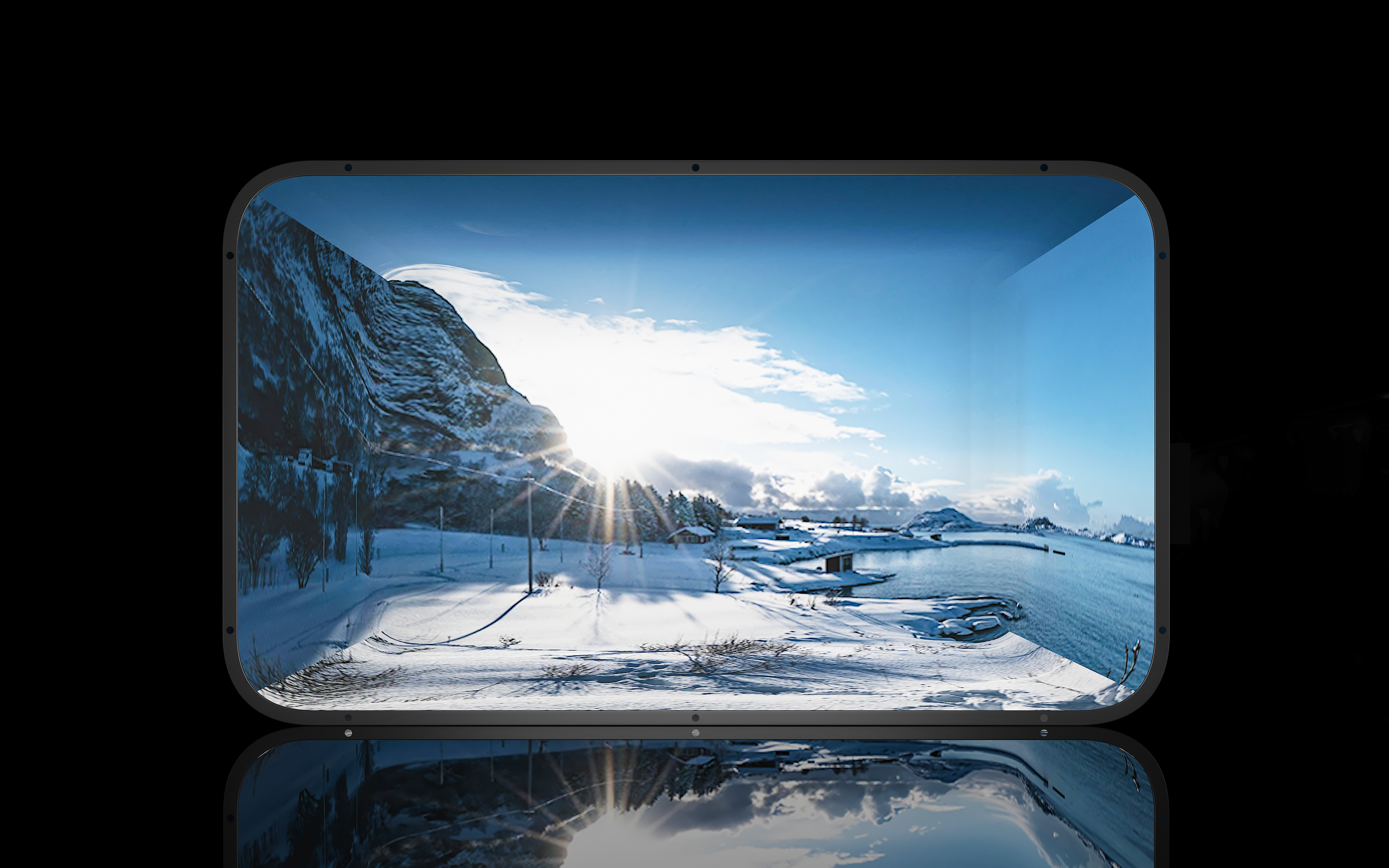

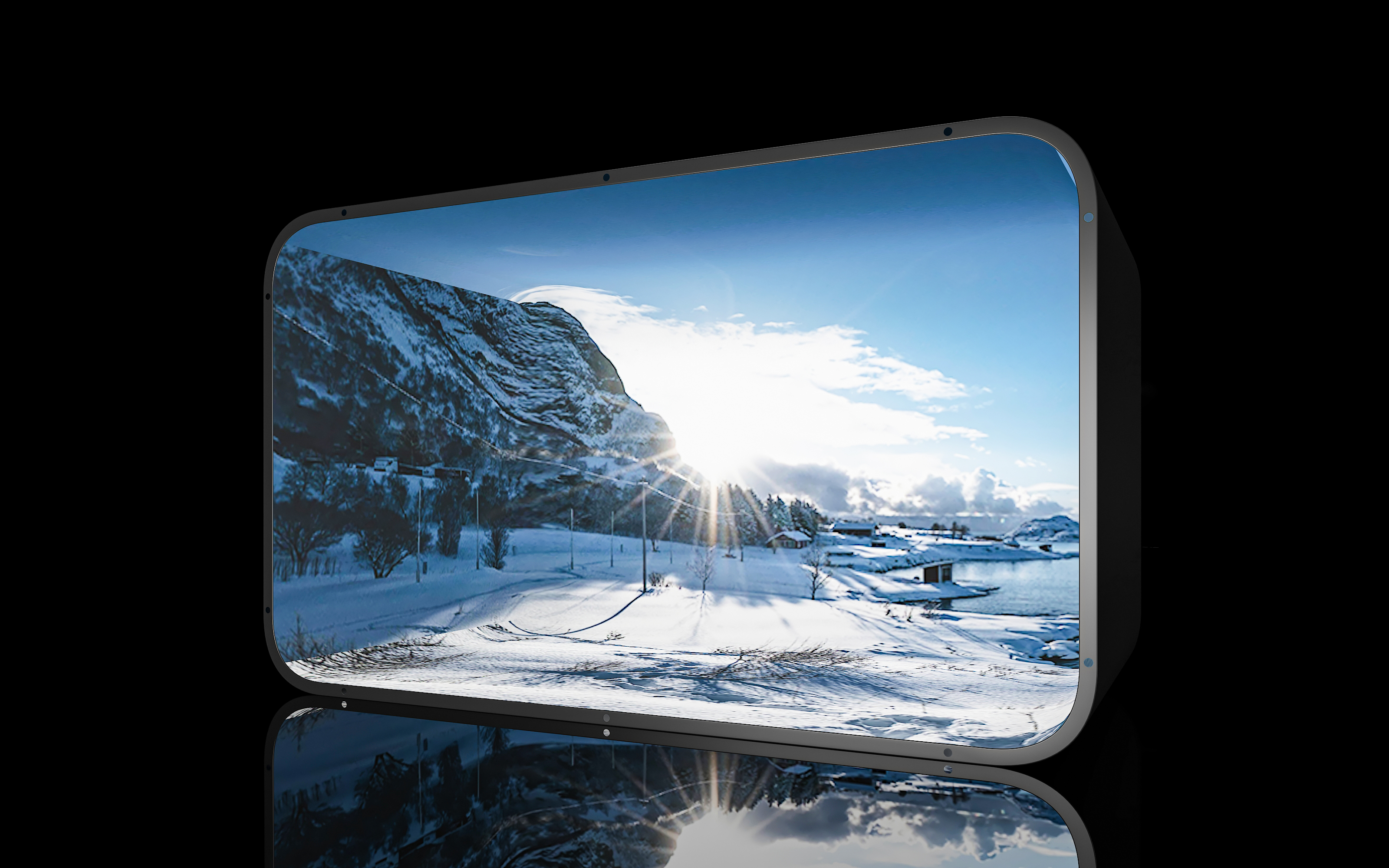

High-definition picture quality for a top-notch performance
In the immersive LED display scene, the distance between the viewer and the display device is very close, which puts higher requirements on the display performance. With the help of high-quality driver IC, the flexible LED display realizes a refresh rate of up to 3840Hz or more, which effectively reduces the generation of water ripples and provides clear and detailed picture quality for close viewing.

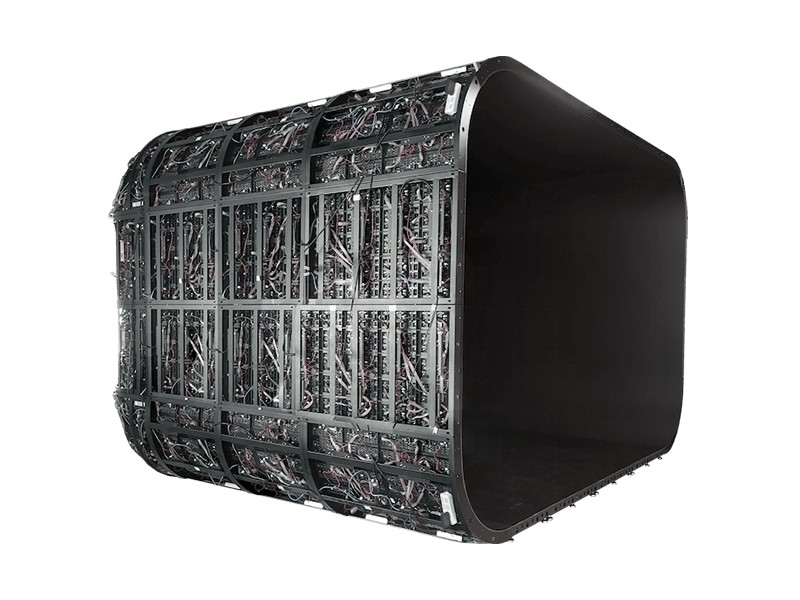

Highly flexible

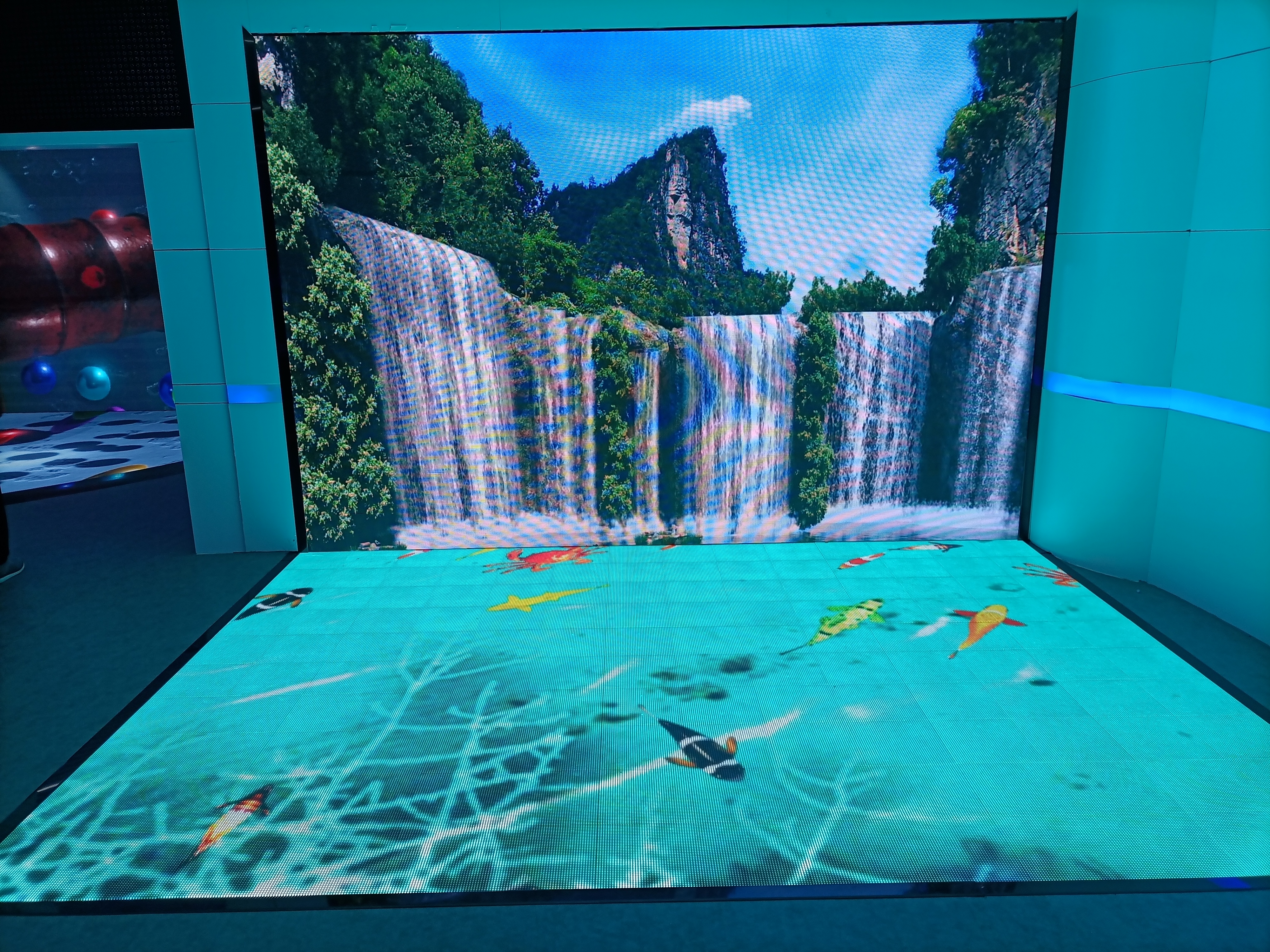

Flexible LED display is not only a powerful assistant to create immersive LED video wall, but also stands out with its high flexibility. It can be assembled diversely according to the characteristics of the project, molding a variety of unique shapes, and injecting more diverse creative elements into the immersive scene.

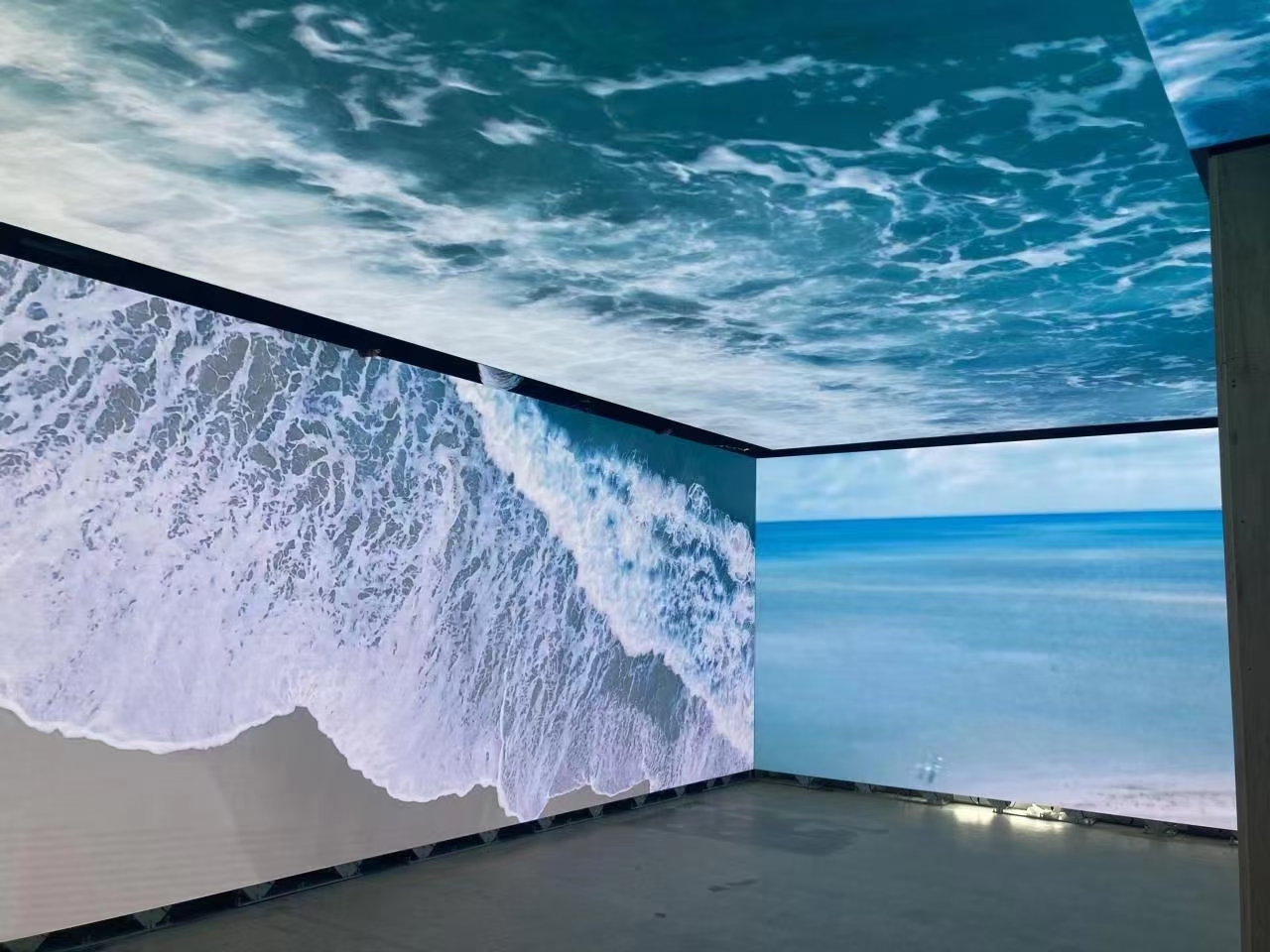

The perfect realization of seamless splicing technology
Immersive LED display with the help of seamless splicing technology, realizing the perfect expression of different module display. This seamless splicing makes the whole space present a complete and integrated picture, allowing the audience to feel an unparalleled sense of immersion, providing a more excellent viewing experience.

Parameter

Model	WO-1.9	WO-2.6
Pixcel Pitch	1.95mm	2.6mm
Pixel Density	262144 dots/m²	160000 dots/m²
Module Size	250×250mm
Module Resolution	128×128 dots	100×100 dots
Cabinet Weight	25 kg/m²
Cabinet Thickness	65mm
Cabinet Material	Die-cast Aluminum
Maintenance	Front Maintenance
Viewing Angle	Horizontal 160° / Vertical 160°
Contrast	10000 : 1
Screen Brightness	600 cd/m²	800 cd/m²
Refresh Rate	3840~7680Hz
Gray Scale	13bit - 16bit
Average Power	＜230 W/m²	＜210 W/m²
Maximum Power	＜680 W/m²	＜630 W/m²
Operating voltage	AC100V±240V / 50-60Hz
Noise Rate	＜1/10,000
Service life	100000 hours
Mean Time Between Failures	>10,000 hours
Operating Temperature Range	﹣30℃～+50 ℃
Operating Humidity Range	10％～ 90％
Certification	CE / ETL / FCC / RoHS
