Can-shape LED Display-Soft Module-Product-Spectrum Creative

MUP

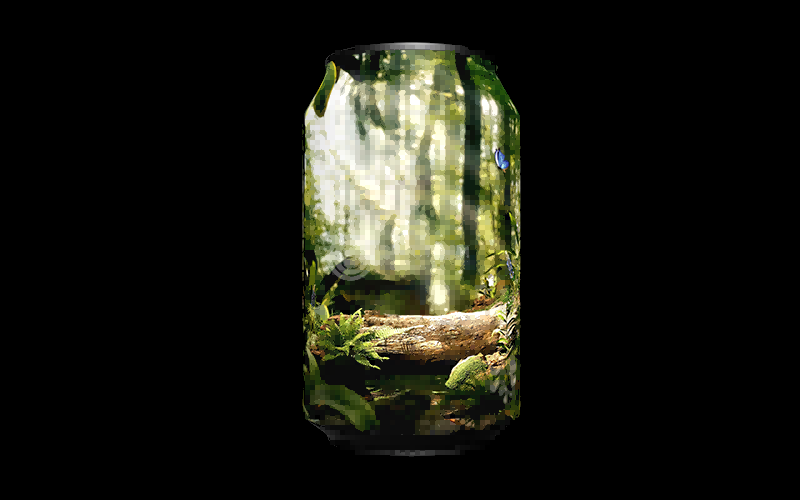

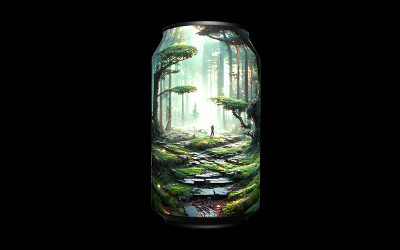

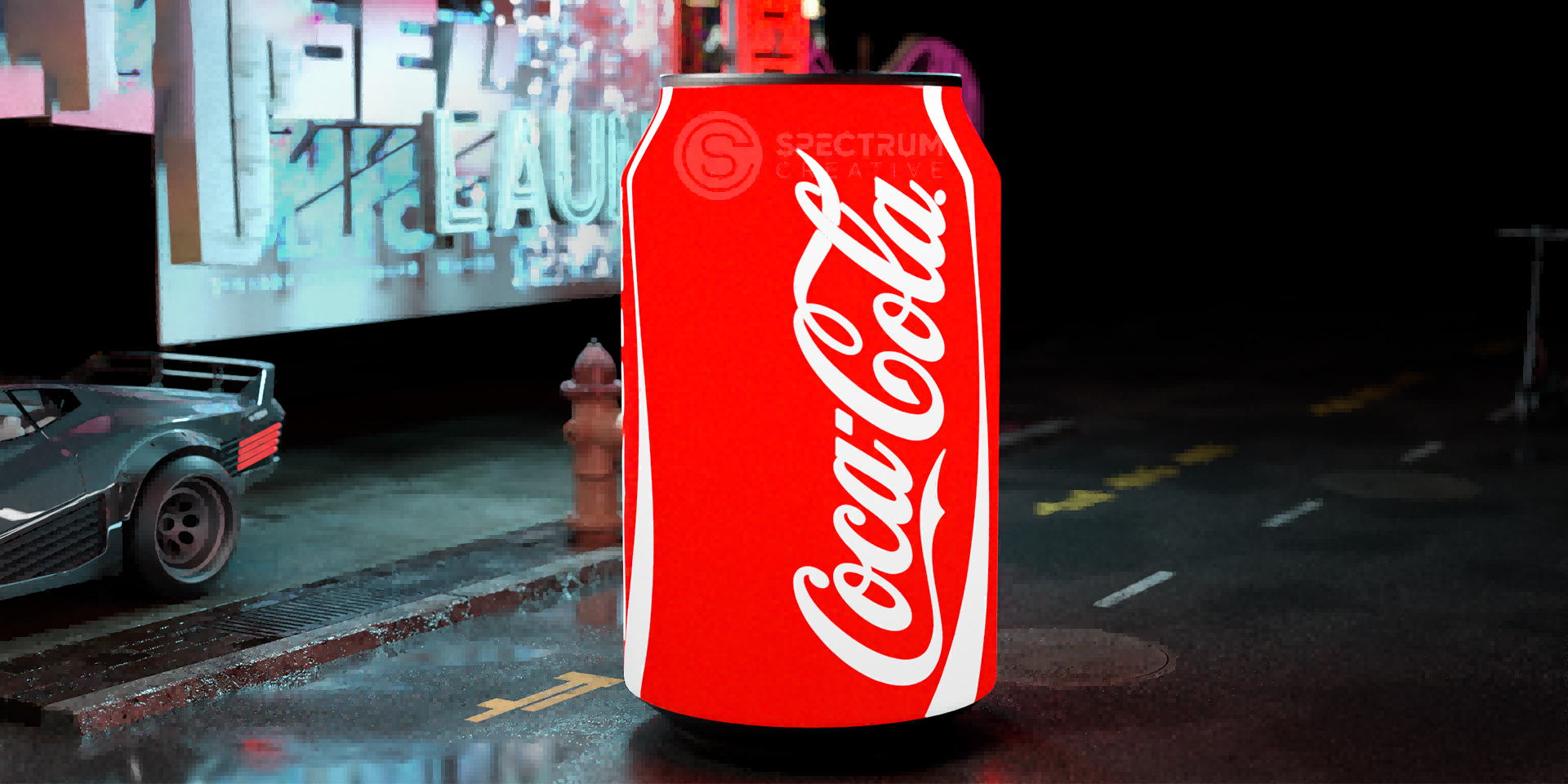

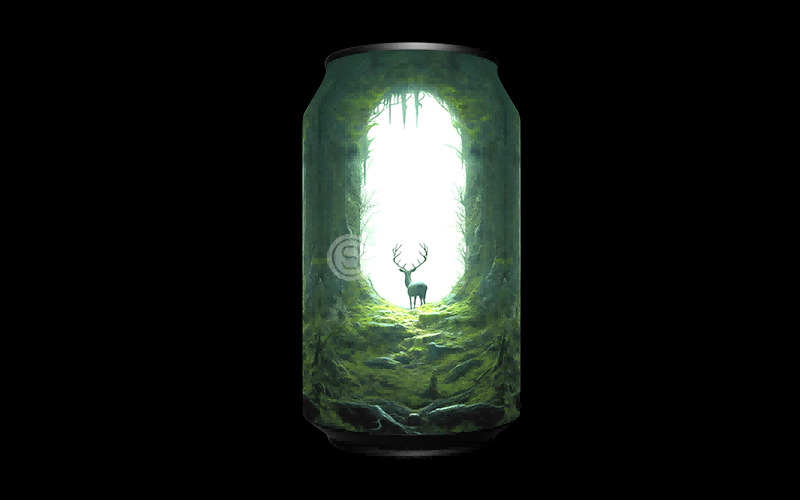

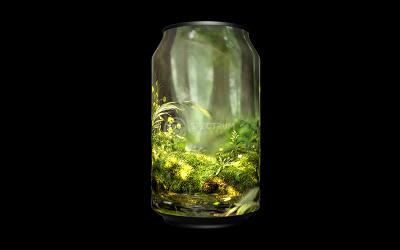

Can-shape LED Display

The can-shaped LED screen is a kind of creative LED display product with innovative design, which has a cylindrical appearance, similar to a jar.With its unique structure, excellent display effect, flexible customizability, high stability, energy saving and environmental protection, and easy maintenance, the can-shaped LED screen is widely used in various scenes, providing high-quality display solutions for commercial media, cultural performances, stadiums, information dissemination and other fields!

Unique appearance

The can-shaped LED has a cylindrical shape, similar to a jar. This design makes it highly recognizable among all kinds of display products and attracts more attention. Thanks to this, the can-shaped LED screens are widely used in commercial advertising, performances, sports events, information dissemination and other scenes, adding color to all kinds of activities!

Extreme visual effect

The can-shaped LED screen adopts RGB tri-color LED beads, which can present rich colors and high-definition images. Under various lighting conditions, the display can maintain a clear display effect. At the same time, the can-shaped LED screen has a wide viewing angle and high brightness characteristics, so that the audience can get a clear picture when viewing from different angles, and can also maintain a good display effect in outdoor environments, suitable for advertising, performances and other scenes.

Flexible customization and easy installation

The can-shaped LED display can be spliced and combined with modules according to actual needs, adapting to different sizes and shapes of display areas. At the same time, it can also be customized to meet the needs of specific scenes. In addition, the modular design of the can-shaped LED display makes installation and maintenance easier. Users can quickly replace modules as needed, reducing maintenance costs and downtime.

Stable, reliable and energy-saving

The can-shaped LED display adopts advanced driving technology and high quality LED module, which has high stability and reliability. It can maintain good working condition even under long time use and harsh environmental conditions. At the same time, the can-shaped LED display has high photoelectric conversion efficiency and low energy consumption. Compared with traditional display products, it has obvious advantages in energy saving.

Parameter

Item	Indoor					Outdoor
Model	P1.25	P1.5	P1.8	P2.0	P2.5	P2.5	P3.076	P4.0	P5.0
Pixel Pitch	1.25mm	1.538mm	1.86mm	2.0mm	2.5mm	2.5	3.076	P4.0	P5.0
LED Type	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Pixel Density	640000 dots/m²	422753 dots/m²	289050 dots/m²	250000 dots/m²	160000 dots/m²	160000 dots/m²	105625 dots/m²	62500 dots/m²	40000 dots/m²
Scan method	1/64	1/52	1/43	1/52	1/43	1/16 Scanning	1/13 Scanning	1/10 Scanning	1/8 Scanning
Brightness	600 cd/m²					4500 cd/m²		5000 cd/m²
Refresh Rate	3840 Hz					3840 Hz
Viewing Angle	H:140° / V:140°					Horizontal >140±10° Vertical>130±10°
Module Size (W×H)	320×160mm					320×160mm
Cabinet Material	Iron cabinet					Iron cabinet
IP Rating (F/R)	IP30					IP65
Working Voltage	AC 110~240V / 50~60Hz					AC 110~240V / 50~60Hz
Power Comsumption (max)	600 W/㎡					585 W/m²	610 W/m²	650 W/m²	410 W/m²
Power Comsumption (avg)	200 W/㎡					300 W/m²	300 W/m²	320 W/m²	200 W/m²
Working Temperature	-20°C~45°C, 10%~90%RH					-20°C~45°C, 10%~90%RH
Maintenance method	Front					Front
Warranty	2 Years					2 Years
Height	Customizable by Requirements					Customizable by Requirements
Diameter	Customizable by Requirements					Customizable by Requirements
