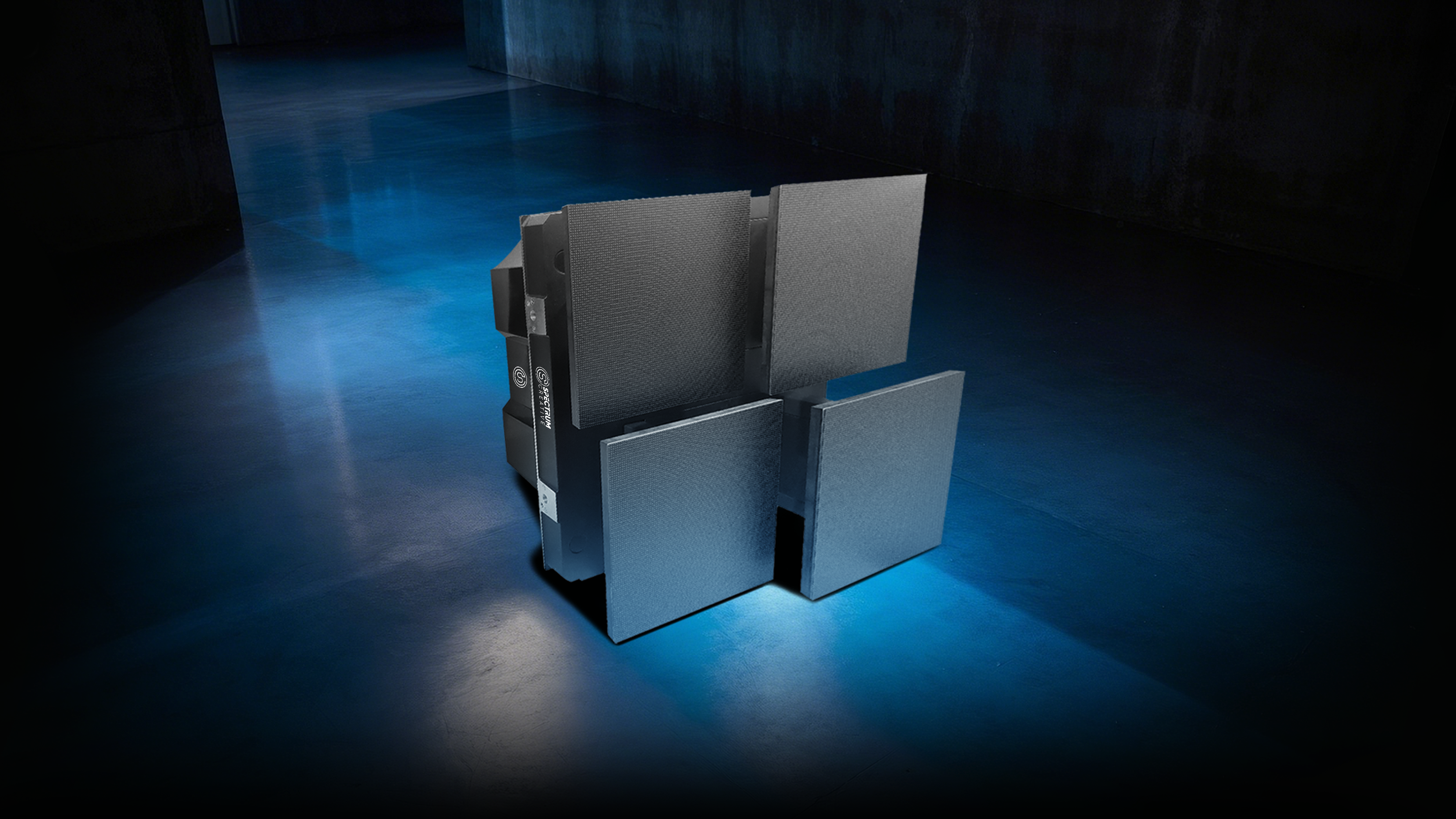

The Kinetic Screen is a state-of-the-art installation delivering immersive 3D experiences via synchronized Z-axis movement. Engineered as an 'all-in-one' rental solution, it offers the perfect balance of fast setup and high-impact aesthetics to ensure your event stands out from the moment it begins.
| Series | 3D Kinetic LED Screen 250 Rental Series | ||||||||||
| Pixel Pitch | P1.5625 | P1.945 | P2.604 | P3.91 | |||||||
| LED Module Size (mm) | 248.5×248.5 | ||||||||||

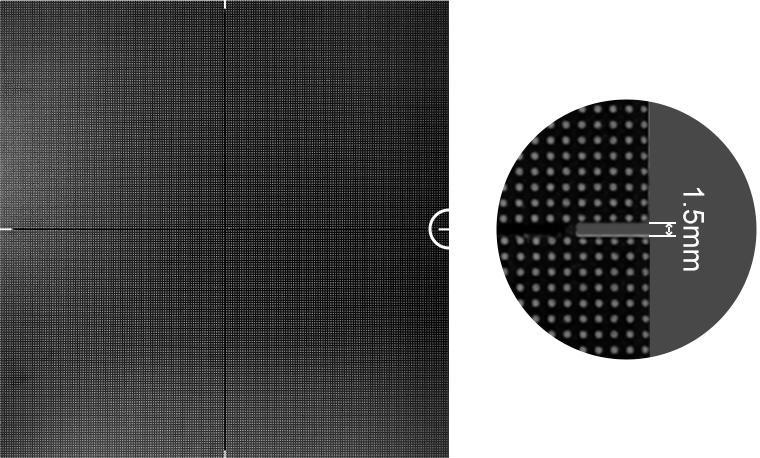

| Module Spacing (mm) | 1.5(1.0~2.0) | ||||||||||
| Moving Unit Size (mm) | 248.5×248.5mm(0.0618m²) | ||||||||||
| Unit Resolution | 160×160 | 128×128 | 96×96 | 64×64 | |||||||

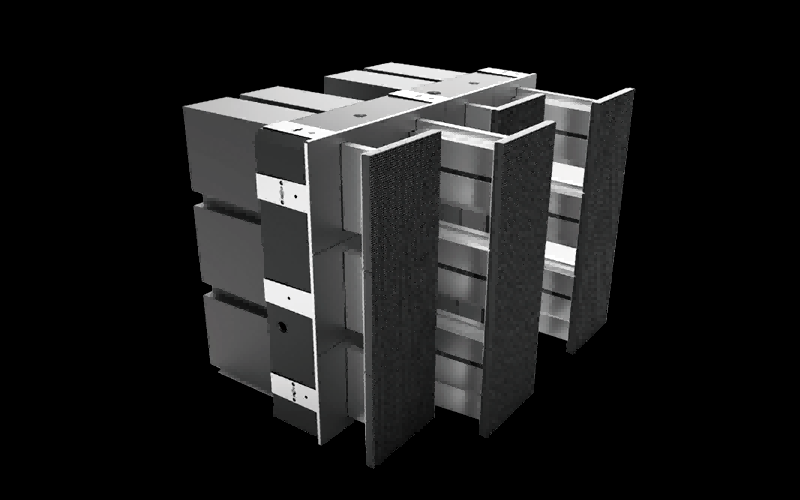

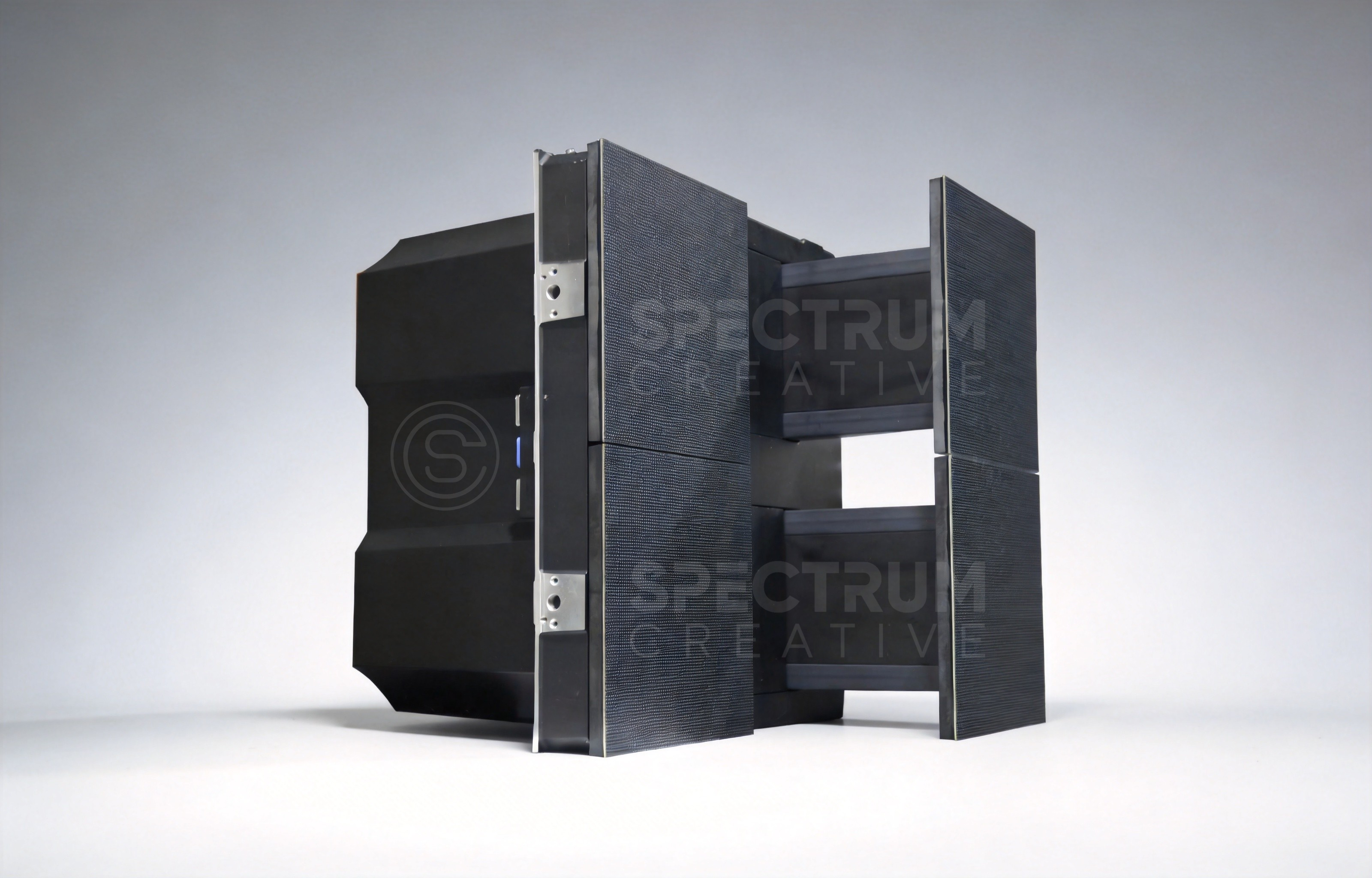

| Cabinet Size (Number of Moving Units) | 500×500(2×2) | ||||||||||
| Cabinet Thickness (Idle Mode) (mm) | 320 | ||||||||||
| Maximum Extension Stroke (mm) | 200 | ||||||||||
| Maximum Extension Speed (mm/s) | 500 | ||||||||||
| Minimum Cycle Time for Extension/Retraction (s) | 0.5 | ||||||||||
| Number of Moving Units per Square Meter | 16 | ||||||||||
| Weight per Square Meter (kg/m²) | 52 | ||||||||||
| Maximum Power Capacity (W/m²) | 720 | ||||||||||
| Power Requirements | ≤3KW-220V Single Phase; ≥3KW-380V Three Phase/Five Wire | ||||||||||
| Screen Brightness (cd/m²) | ≥600 | ||||||||||
| Ambient Temperature (°C) | 0~40 | ||||||||||
| Environmental Requirements | Indoor use, no corrosive gases, no flammable gases, no oil mist and dust | ||||||||||
| Cooling Method | Open self-cooling (including fan cooling) | ||||||||||
