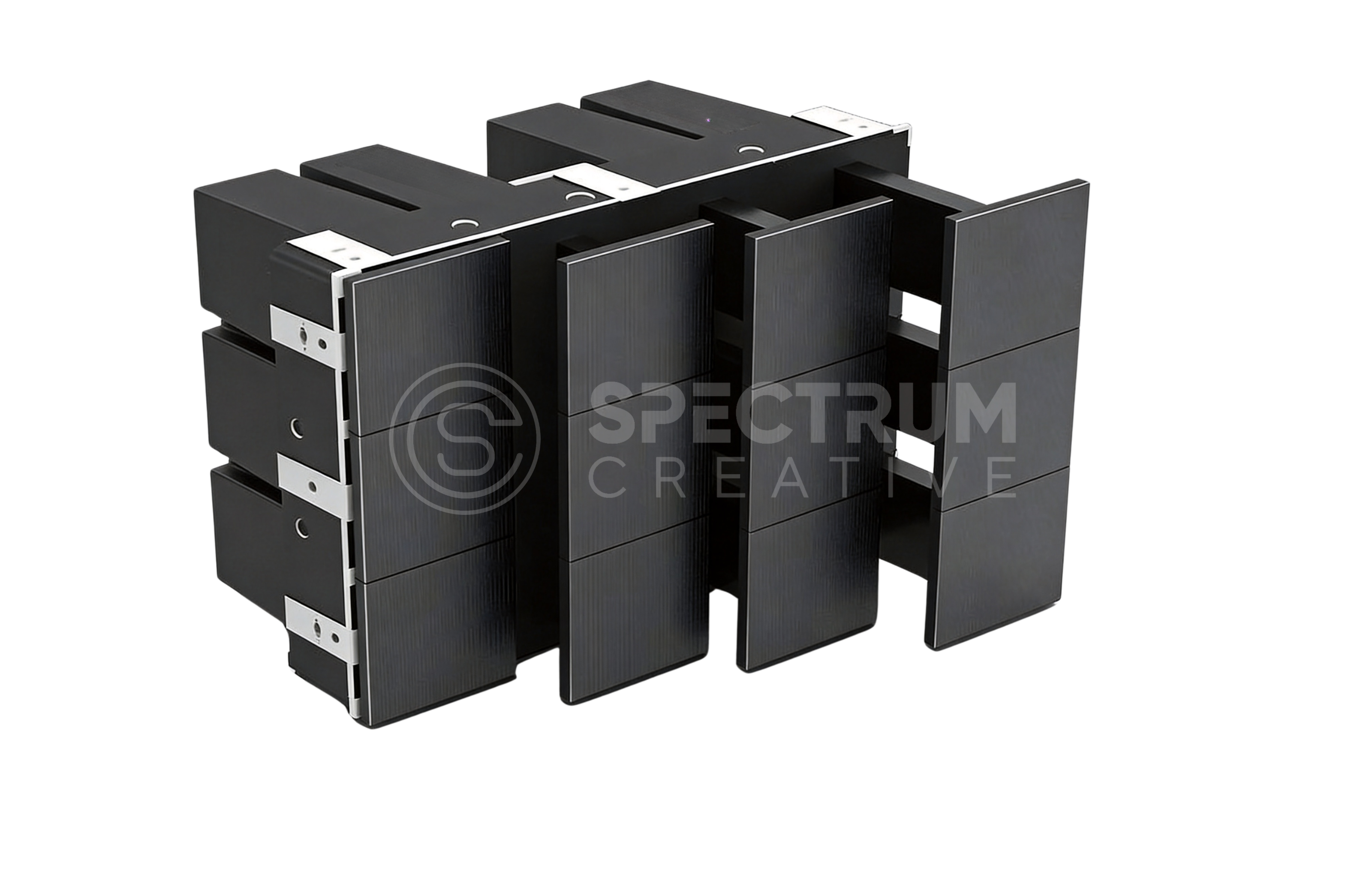

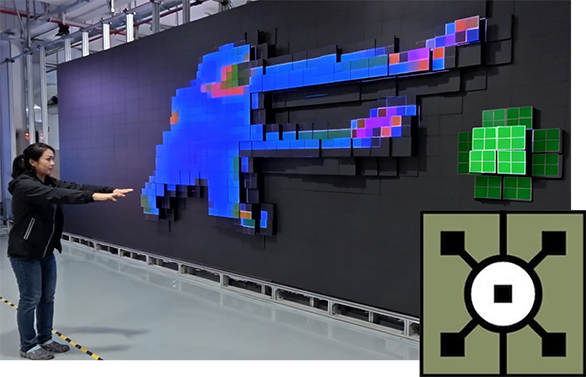

At the heart of the indoor universal 3D kinetic screen lies its ability to deliver vivid naked-eye 3D visuals through precise real-time Z‑axis motion control. Designed for both fixed installation and professional rental applications, it upgrades static spaces into immersive multi‑dimensional visual environments. By deeply integrating mechanical movement with digital content, it achieves an exceptional depth of field that far surpasses traditional display screens.
| Model | SC-160-200-I | SC-250-200-I | SC-320-400-O | SC-500-600-O |
| LED Pixel | Indoor-P1.98 | Indoor-P1.953 | Outdoor-P2.5 | Outdoor-P10.4125 |
| LED Module Dimension(WxH)(mm) | 160x160 | 250x250 | 320x160 | 495x245 |

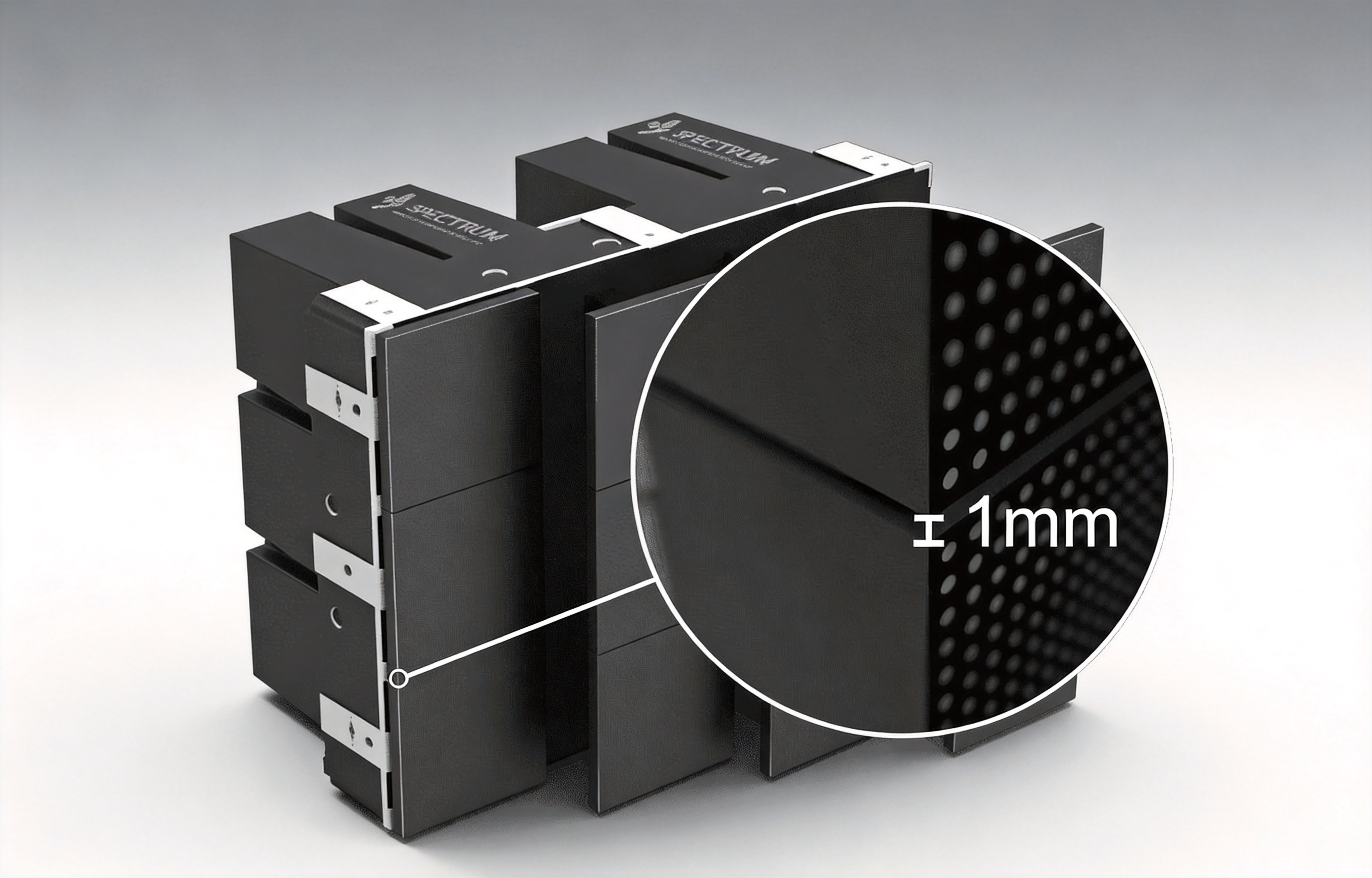

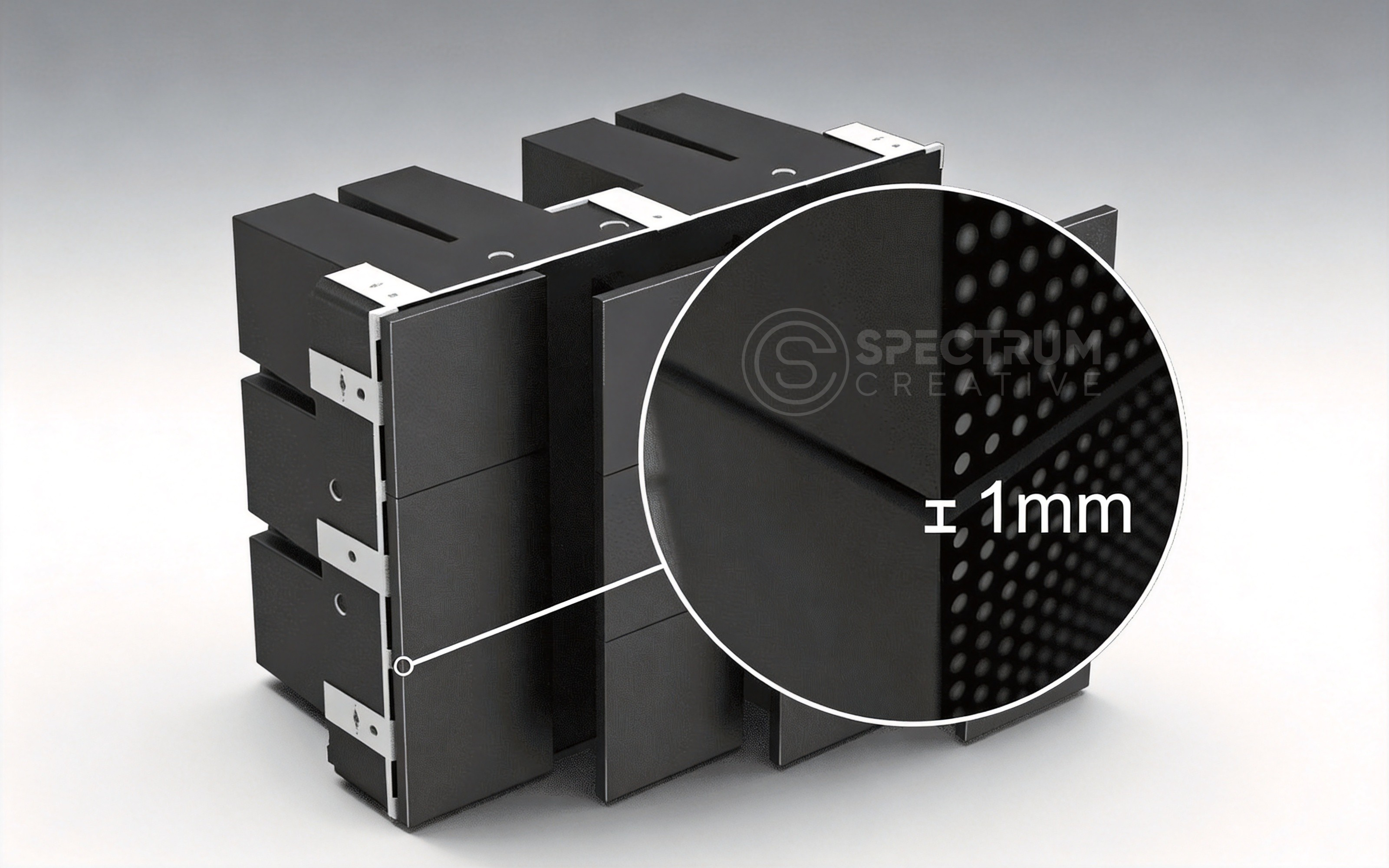

| Gap between Units(mm) | 1 (0.5~1.5) | 2 (0.5~1.5) | 2 (1.5~2.5) | 5 (3.5~6.5) |
| Visual Gap(mm) | 0.7 (Lamp beads moved outward 0.15) | 2.0 | 2 | 0(Lamp beads moved outward 2.5) |
| Unit Display Dimension(W x H)(mm) | 160x160 (0.0256m²) | 250x250 (0.063m²) | 320x320 (0.102m²) | 495x495 (0.25m²) |
| Resolution of Unit(Px)(WxH) | 80x80 | 128x128 | 128x128 | 48x48 |
| Cabinet Dimension(WxH)(mm) | 644x483 (4x3) | 504x756 (2x3) | 644x966 (2x3) | 1000x1000 (2x2) |
| Cabinet Thickness(mm) | 320 | 320 | 650 | 1430 |
| Cabinet weight(kg) | 23.3 | 18 | 100 | 171 |
| Cabinet distribution power(W) | 270 | 270 | 720 | 1500 |
| Max. Forward Stroke(mm) | 200 | 200 | 400 | 600 |
| Max. Forward Speed(mm/s) | 600 | 500 | 600 | 800 |
| Min. Forward-back Cycle Time(s) | 0.4 | 0.6 | 1 | 1.5 |
| Unit Qty per Sqm | 38.6 | 15.87 | 9.64 | 4 |
| Weight per Sqm(Kg) | 75 | 72 | 161 | 171 |
| Distribution power per Sqm(W) | 869 | 708 | 1157 | 1350 |
| Power Supply | <3KW: single phase；≥3KW: three phase (Three-phase five-wire system) | three phase (three-phase five-wire system) | ||
| Screen Brightness(cd/㎡） | ≥600 | ≥7000 | ||
| Ambient Temperature(℃) | 0~40℃(non frost) | -10~60℃ | ||
| Ambient Humidity(RH) | Non rainproof 70% (non dew) | Rainproof ≤95%RH (dew) | ||
| Environmental Requirements | Indoor, no etchant gas, no inflammable gas, no oil mist and dust | Outdoor, no etchant gas, no inflammable gas, no oil mist and dust | ||
| Heat Dissipation | Open self-cooling (with fan cooling) | Semi-closed self-cooling (with fan cooling) | ||
