Regular soft module

The Soft Module LED Display is a highly flexible and versatile LED display solution that combines innovation and creativity to revolutionize the concept of the traditional LED display, creating new artistic LEDs, such as wavy, spherical, etc. offering endless possibilities.It is the unique Creative LED display

Flexible design and application

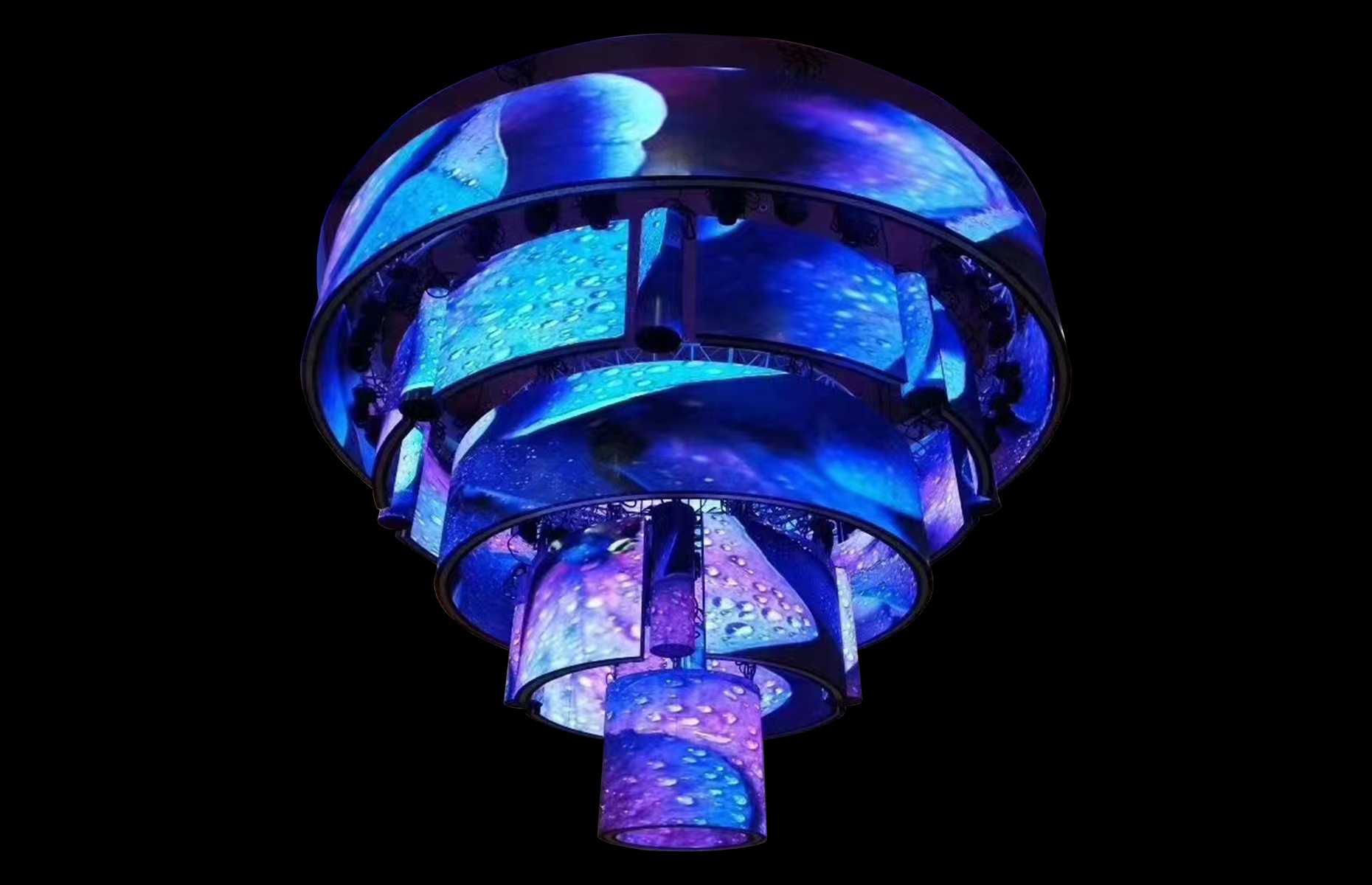

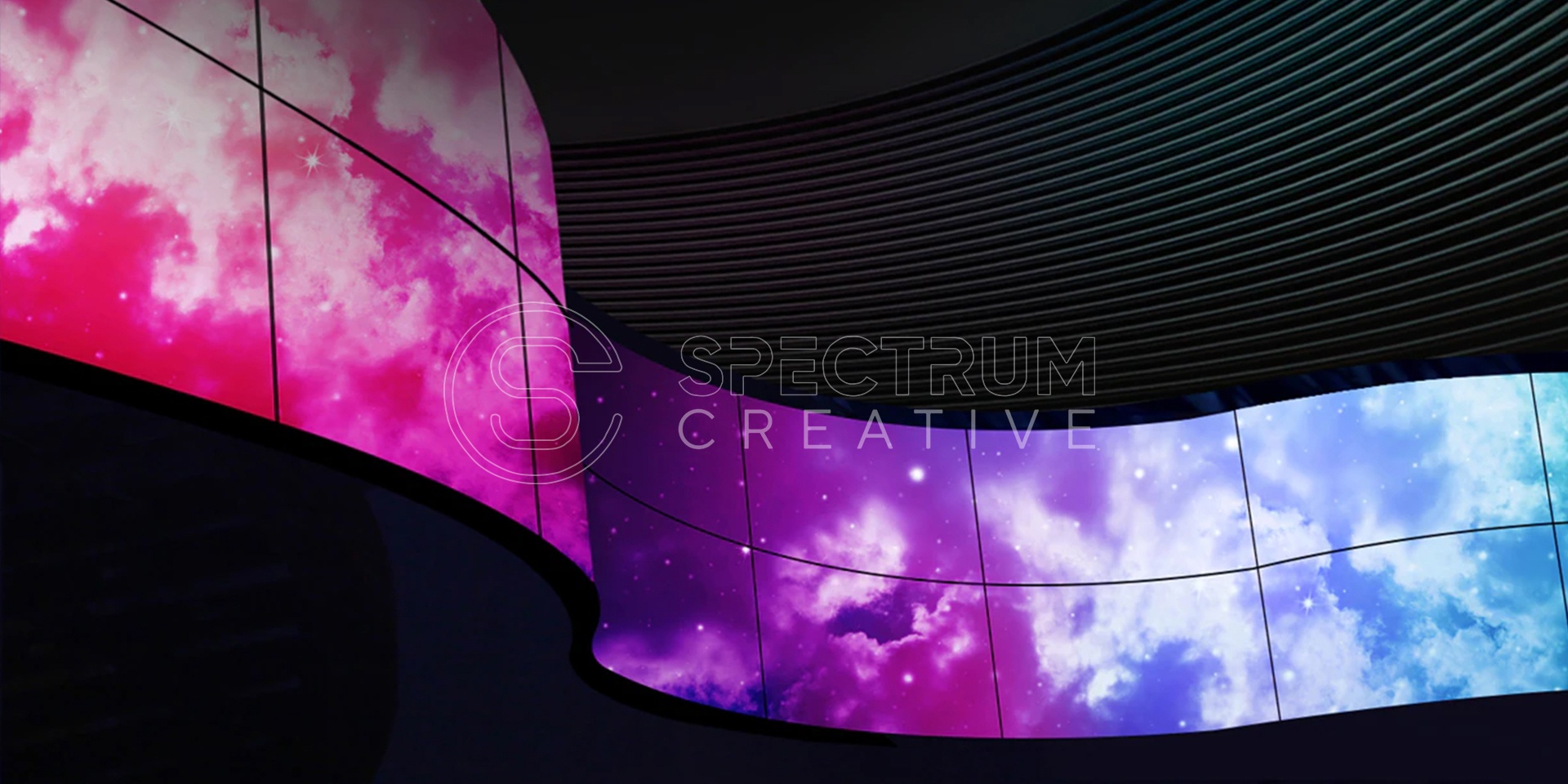

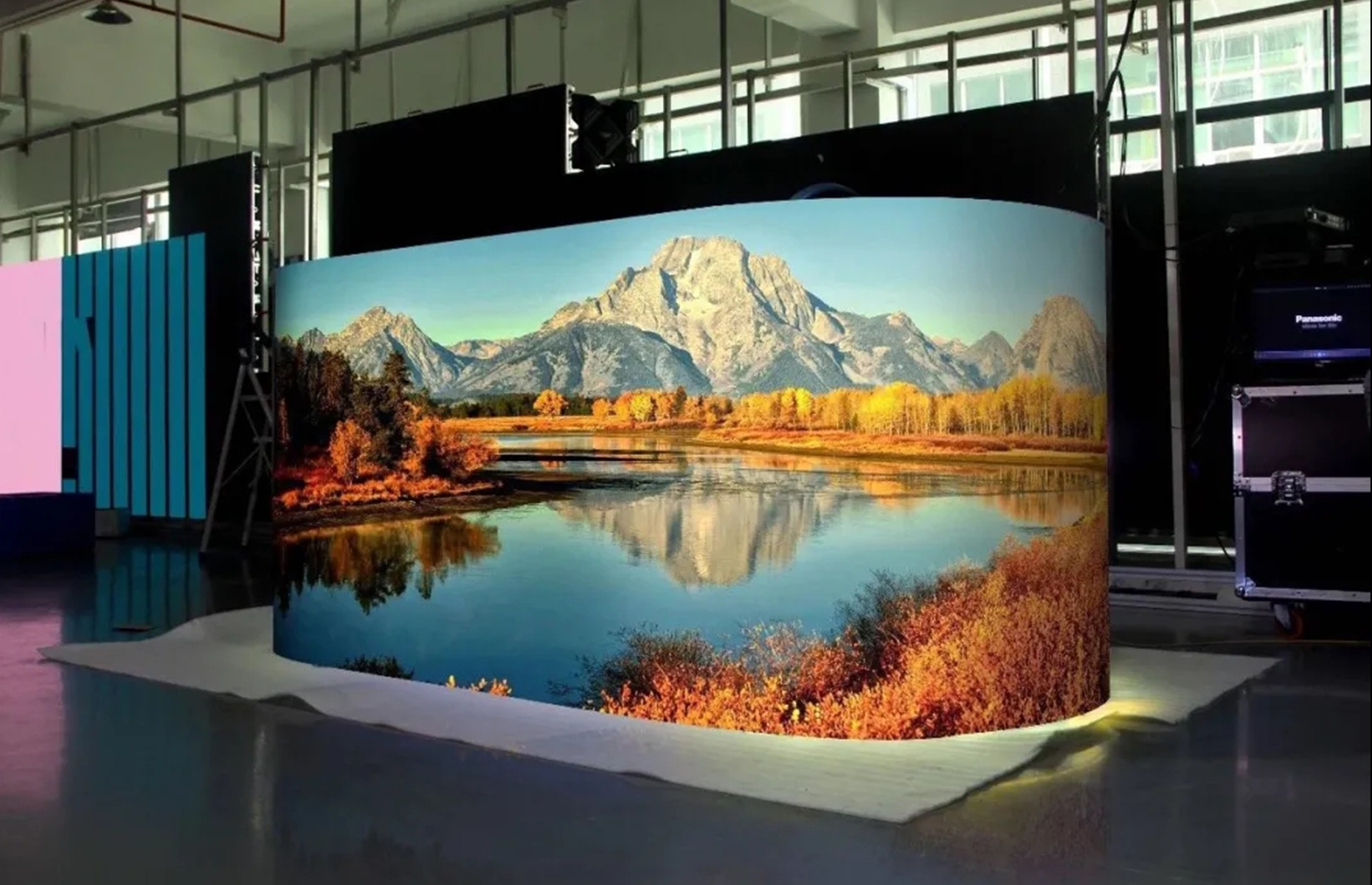

LED soft module is a highly malleable LED display technology, its special soft design allows LED screen to adapt to a variety of shapes and curved surfaces, to achieve more flexible, three-dimensional visual effects. From arcs to spheres to irregular shapes, this module can be perfectly adapted to a variety of creative design needs, enabling creators to present more creative works of art on the LED display.

Fusion of art and technology

The emergence of LED soft module is the perfect combination of art and technology. This technology provides artists and designers with a wider range of creative space so that they can create more creative and visually impactful works on LED displays, thus immersing the audience in infinite imagination and creativity.

Customized service and application scenarios

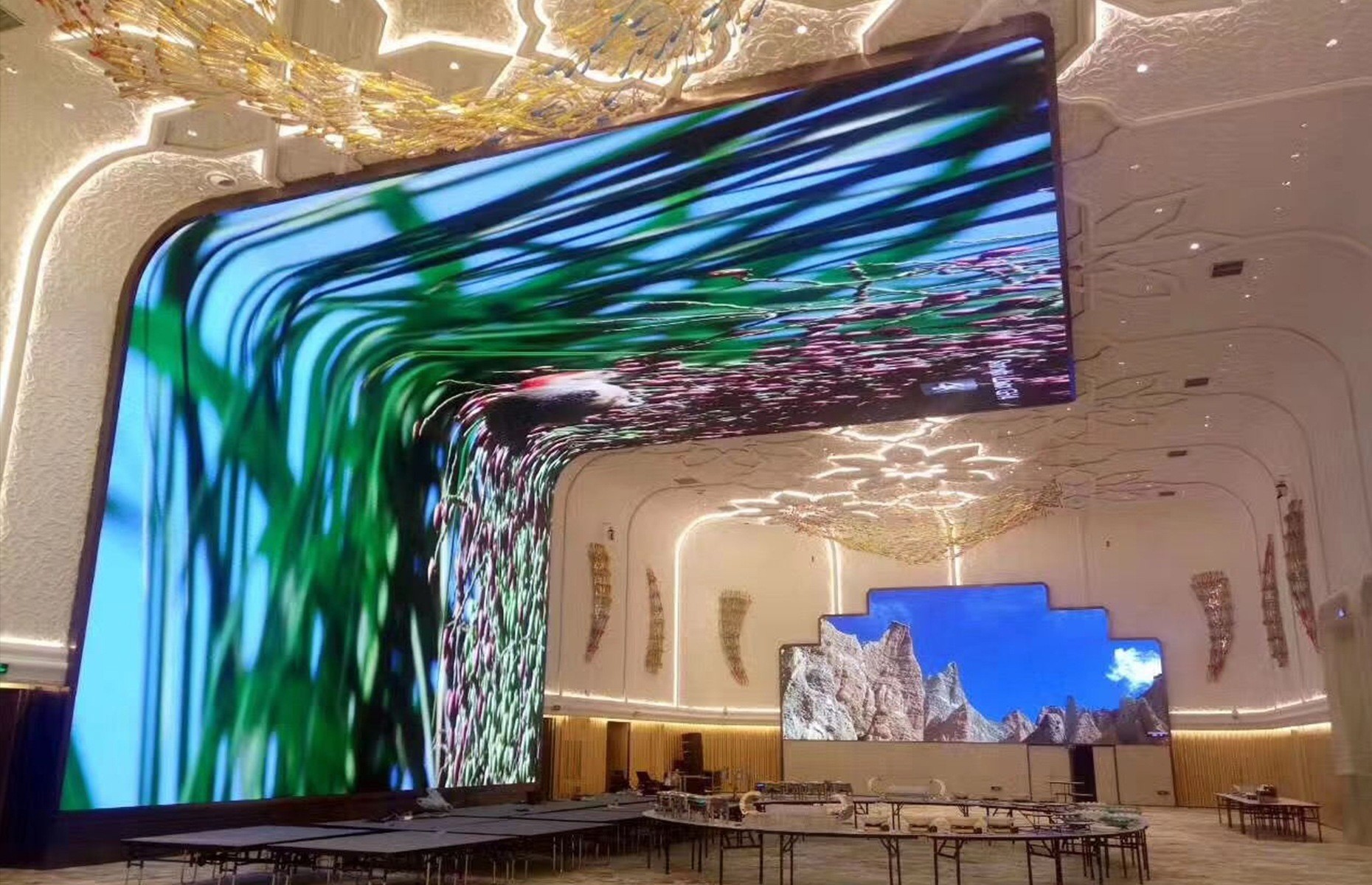

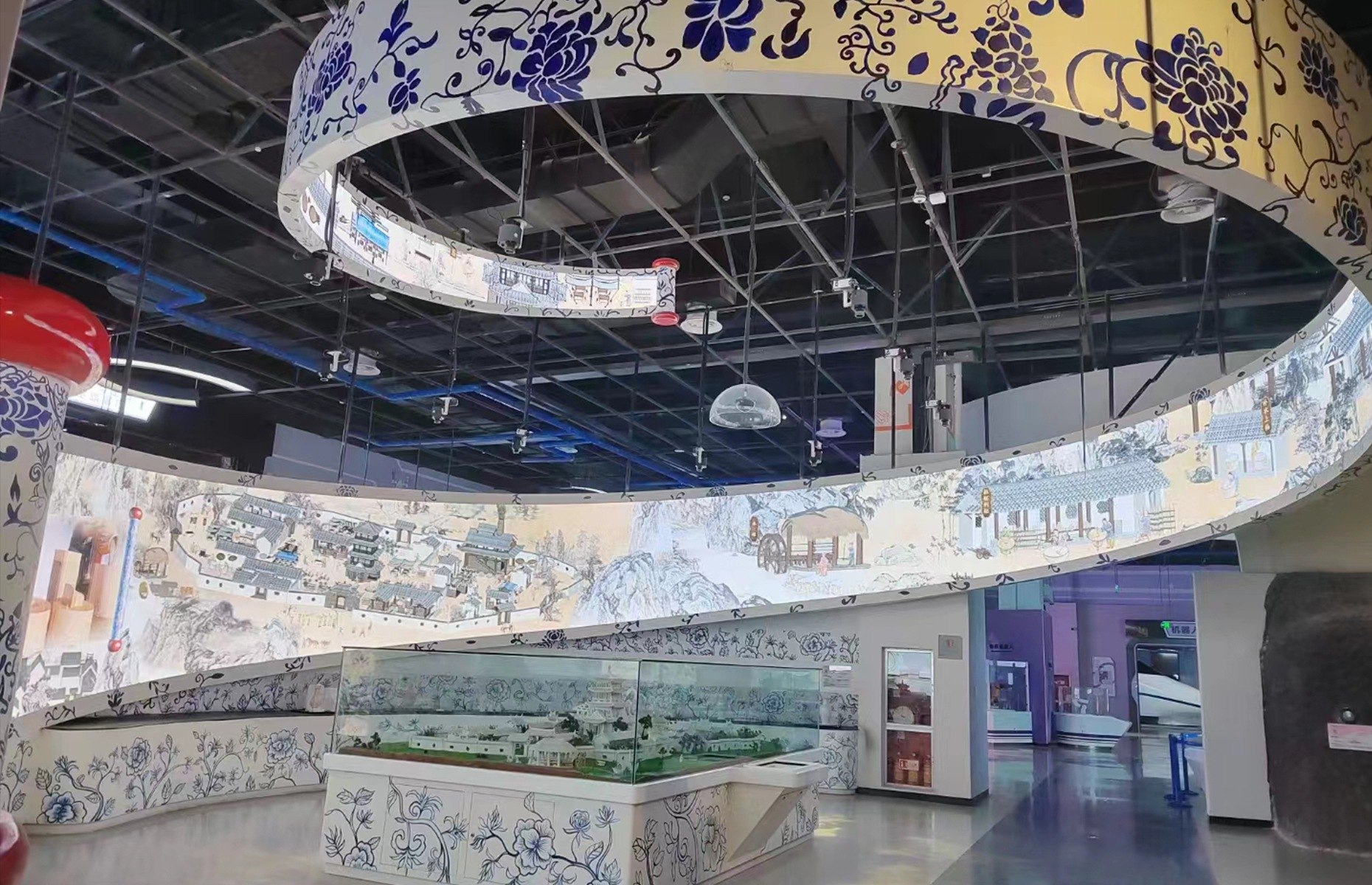

LED soft module provides a high degree of customization and can meet the needs of various creative projects. It is widely used in indoor and outdoor billboards, shopping mall decorations, stage backdrops, exhibition displays and many other fields, bringing a very powerful and visually impactful display effect to different scenes.

Explores new possibilities

This amazing technology is not only an innovation of LED display, but also explores new possibilities for the combination of art, design and technology.The introduction of LED soft module brings a broader prospect and unlimited imagination for the future development of LED display technology.

Parameter

Item	Indoor					Outdoor
Model	P1.25	P1.5	P1.8	P2.0	P2.5	P2.5	P3.076	P4.0	P5.0
Pixel Pitch	1.25mm	1.538mm	1.86mm	2.0mm	2.5mm	2.5	3.076	P4.0	P5.0
LED Type	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Pixel Density	640000 dots/m²	422753 dots/m²	289050 dots/m²	250000 dots/m²	160000 dots/m²	160000 dots/m²	105625 dots/m²	62500 dots/m²	40000 dots/m²
Scan method	1/64	1/52	1/43	1/52	1/43	1/16 Scanning	1/13 Scanning	1/10 Scanning	1/8 Scanning
Brightness	600 cd/m²					4500 cd/m²		5000 cd/m²
Refresh Rate	3840 Hz					3840 Hz
Viewing Angle	H:140° / V:140°					Horizontal >140±10° Vertical>130±10°
Module Size (W×H)	320×160mm					320×160mm
Cabinet Material	Iron cabinet					Iron cabinet
IP Rating (F/R)	IP30					IP65
Working Voltage	AC 110~240V / 50~60Hz					AC 110~240V / 50~60Hz
Power Comsumption (max)	600 W/㎡					585 W/m²	610 W/m²	650 W/m²	410 W/m²
Power Comsumption (avg)	200 W/㎡					300 W/m²	300 W/m²	320 W/m²	200 W/m²
Working Temperature	-20°C~45°C, 10%~90%RH					-20°C~45°C, 10%~90%RH
Maintenance method	Front					Front
Warranty	2 Years					2 Years
