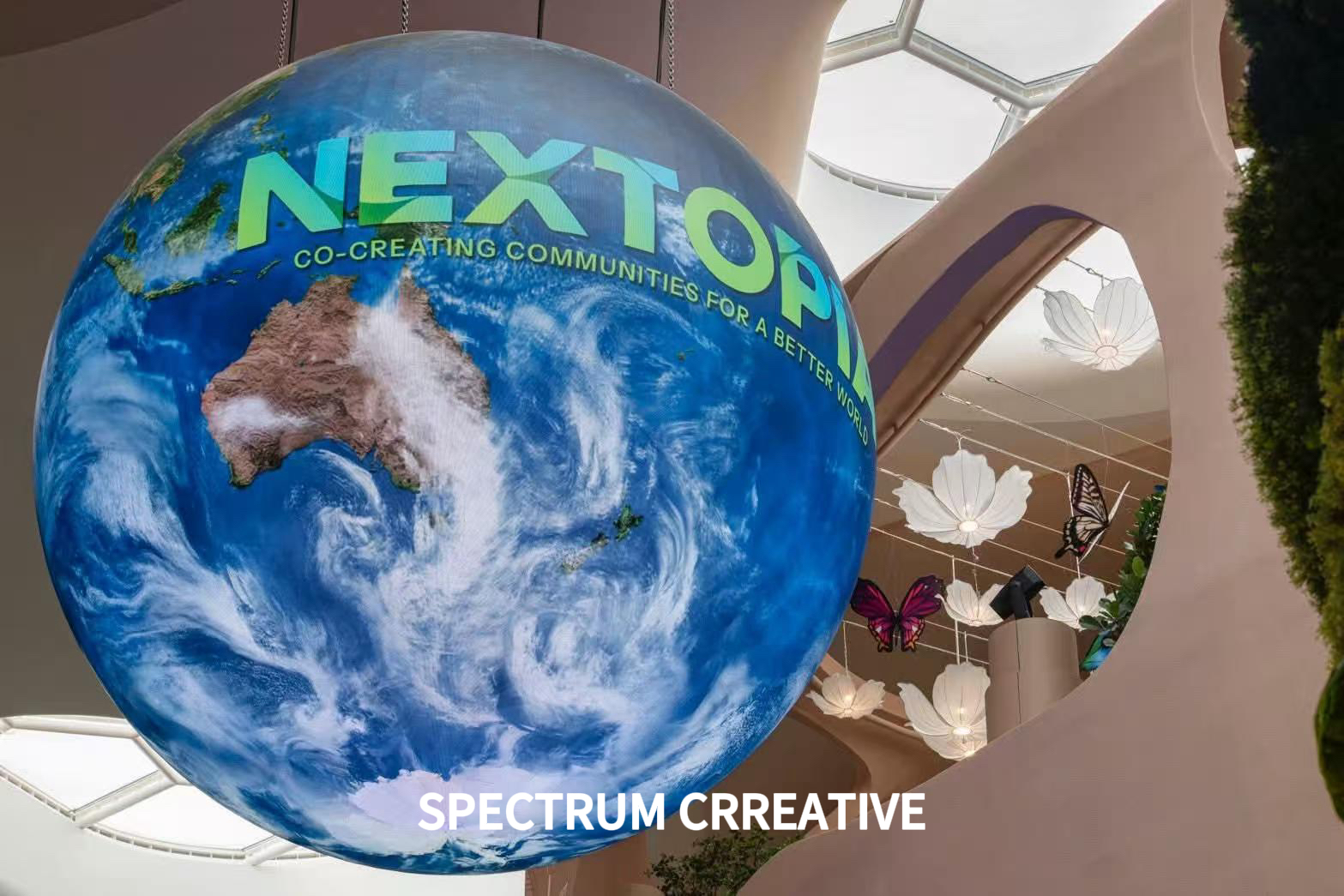

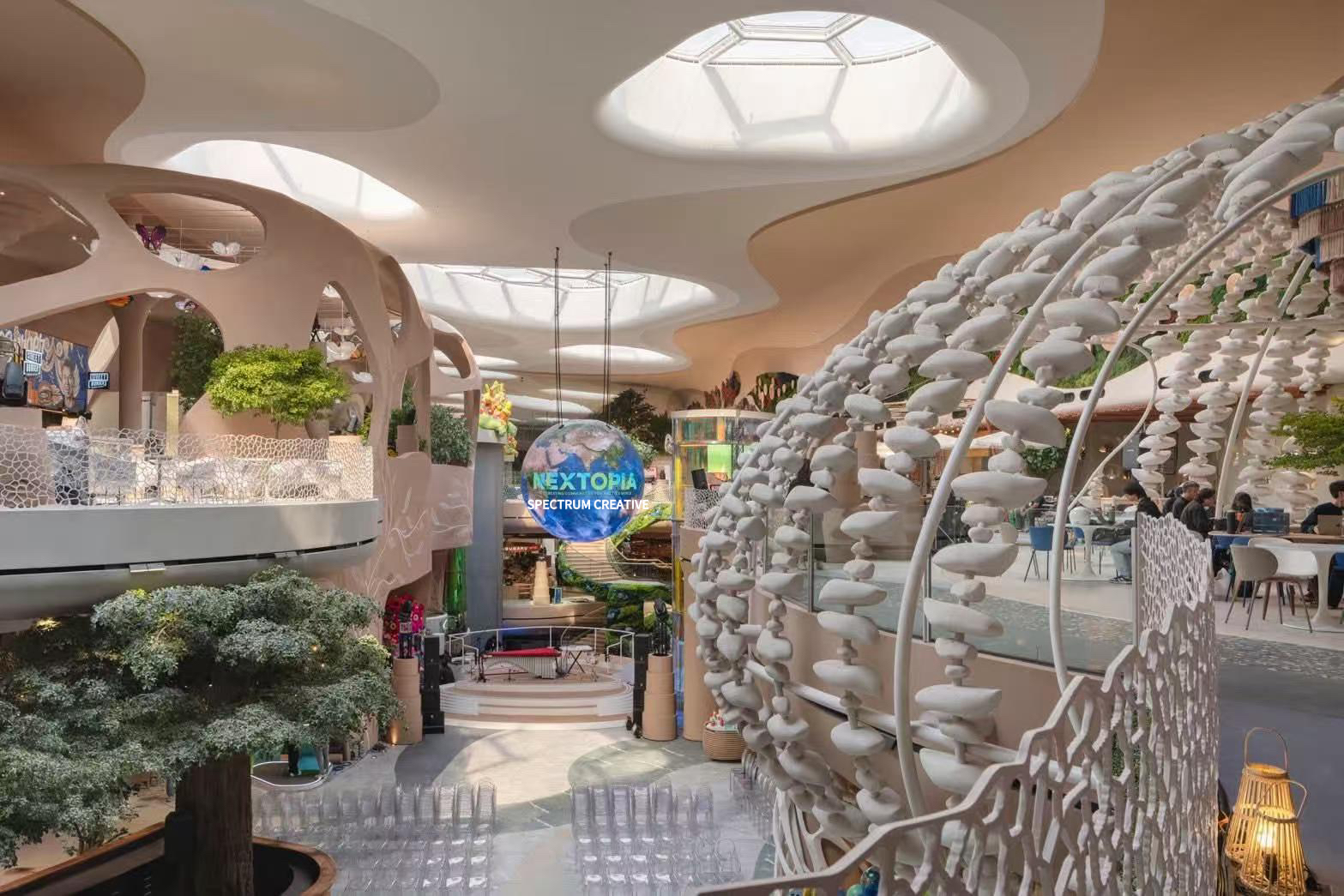

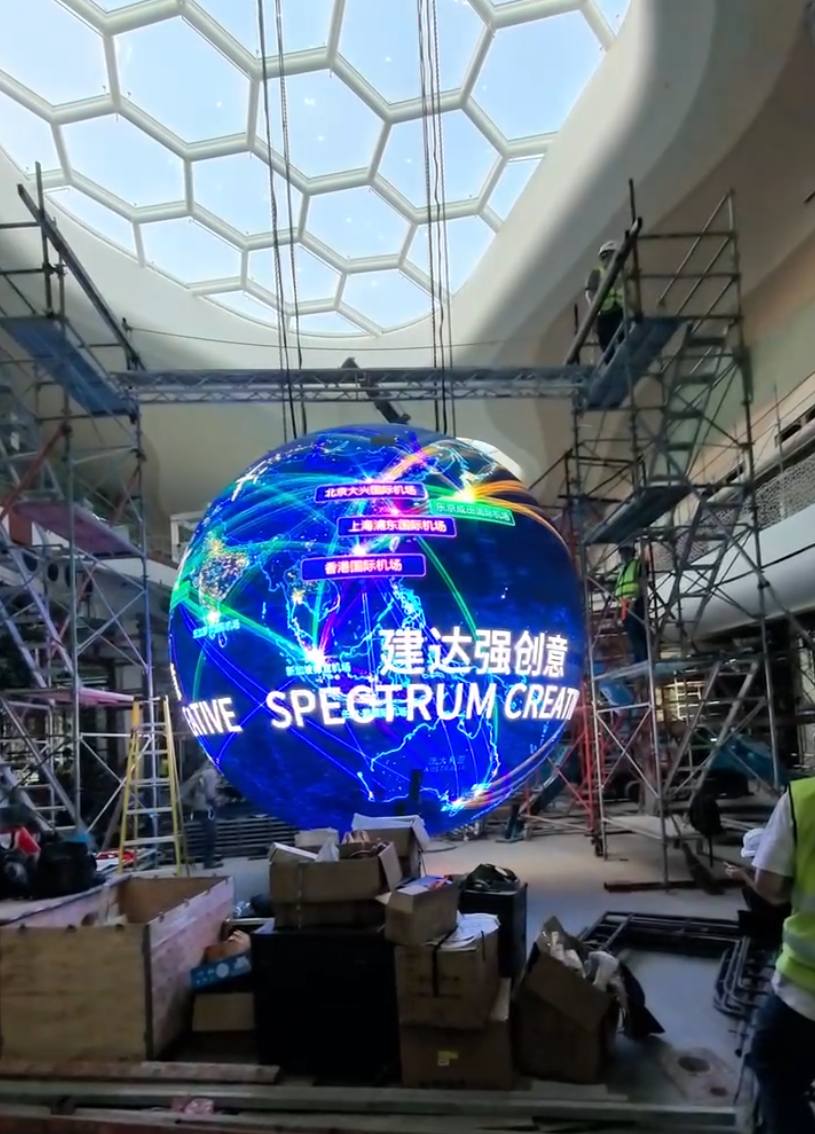

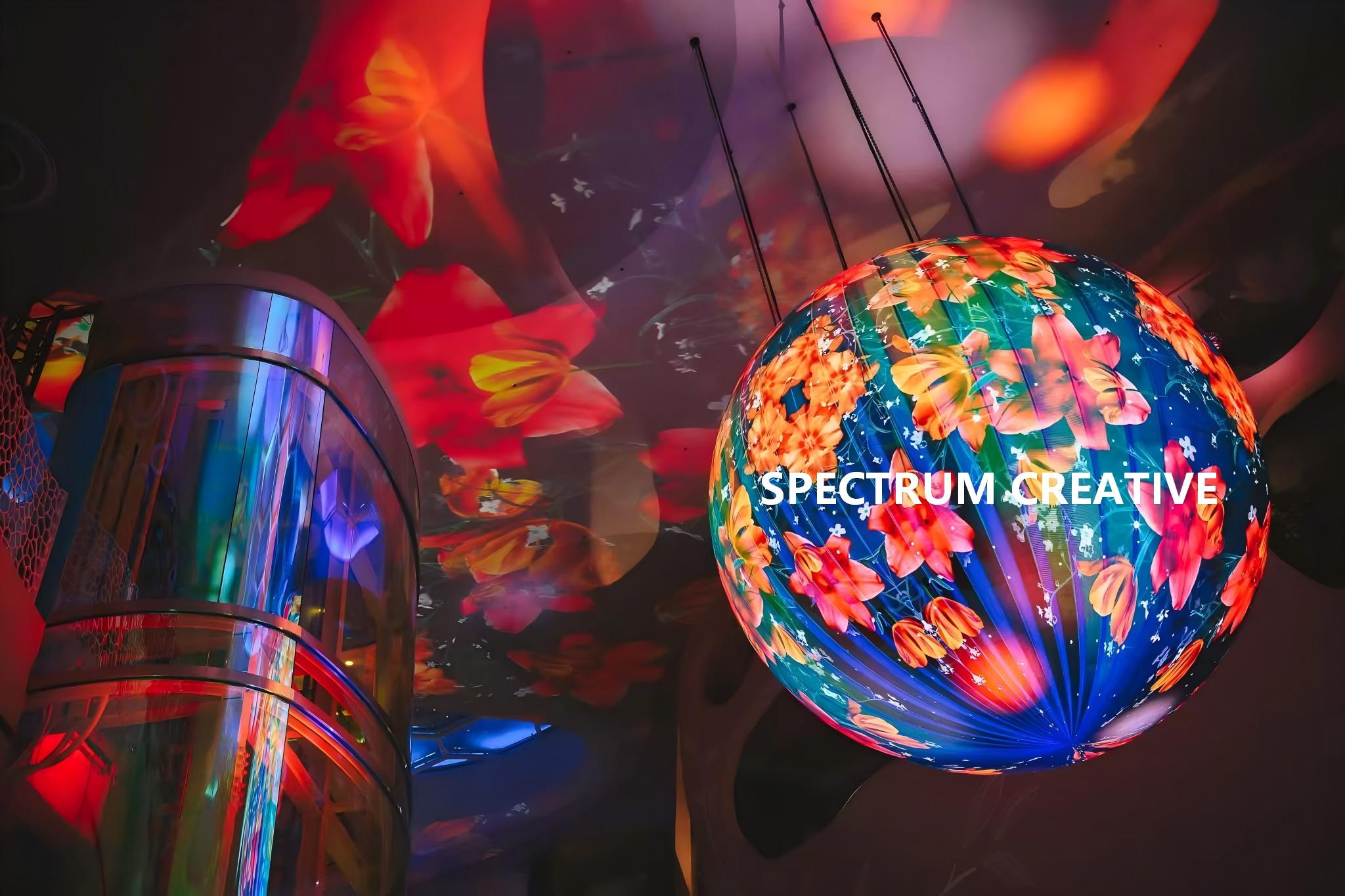

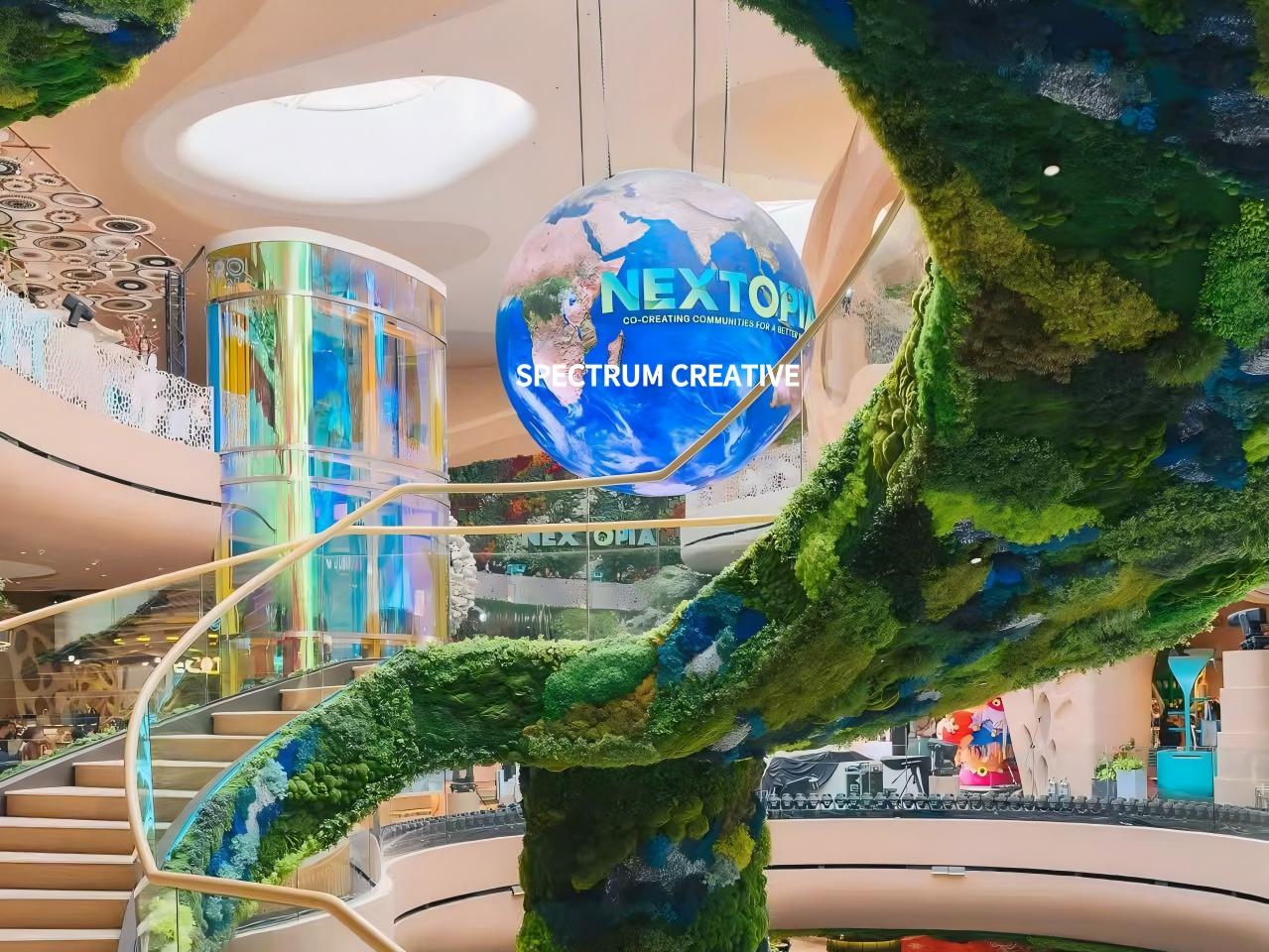

LED Spherical Display

LED spherical display is a new kind of LED display products, its spherical design brings users a 360-degree viewing angle effect.Unlike traditional LED displays, LED spherical displays stand out with their unique spherical appearance. Its unique design provides clear images and video in any direction, presenting the content in its entirety no matter where the viewer is, avoiding image distortion and capturing the public's attention immediately. It is the highly distinctive Creative LED display.

Unique appearance and eye-catching
Its spherical appearance design makes it unique among many LED displays, easier to attract the audience's eyes and become the focus of various occasions.
Distortion-free HD images and videos
LED dome displays present images and videos in high definition, independent of shape changes, in extremely high quality, whether it is text, pictures or video content.
Creative styling
Suitable for a variety of creative styling, such as LED Sphere Matrix

Parameter

Indoor							Outdoor
Model	P1.5	P1.8	P2	P2.5	P3	P4	More than P4
Pixel Pitch()	1.5mm	1.875mm	2mm	2.5mm	3mm	4mm	More than 4mm
Diameter	0.5m~1m	1m~2m	1m~4m	0.6m~4m	0.3m~4m	1m~4m	≥2m
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020	SMD2020	SMD 3-in-1
Britghtness	≥600 CD/㎡	≥600 CD/㎡	≥600 CD/㎡	≥600 CD/㎡	≥600 CD/㎡	≥600 CD/㎡	≥4500 CD/㎡
Avg. Power Consumption	160 W/㎡			150 W/㎡			350 W/㎡
Max Power Consumption	480 W/㎡			450 W/㎡			1000 W/㎡
Refresh Rate	3840 Hz						3840 Hz
Input Voltage	AC100~240V / 50~60Hz						AC100~240V / 50~60Hz
Life Span	≥70000 Hours						≥70000 Hours
Working Temperature	-20℃ ~ 50℃						-30℃～+55℃
Working Humanity	10% ~ 90% RH						10% ~ 90% RH
Gray Scale	12bit ~ 16bit						12bit ~ 16bit
