Customized soft module

Spectrum Creative's custom LED soft module – a cutting-edge solution tailored to your unique needs. With its flexible design, high-resolution display, and adaptability to various shapes, our custom soft modules redefine visual experiences, providing a versatile and innovative solution for a wide range of applications. It is the highly distinctive LED display.

Curvature flexibility
LED soft modules are flexible and can be displayed in very large curvatures, up to 120 degrees. This curvature can be easily applied to a variety of surfaces, creating a smooth and dynamic visual effect. From subtle curves to completely custom shapes, it's all easy to achieve.
Integrated software and hardware
We not only provide creative visual customization, but also combine advanced software and hardware design. This integrated design of software and hardware makes the LED soft module not only amazing, but also has excellent stability and durability. Not only do you get satisfying visuals, you also benefit from reliable performance over the long term.
Multiple customization
We offer a variety of sizes, colors and patterns to choose from. This means you can customize LED soft modules according to your own brand, product or scene needs. Whether it is the decoration of large hotel lobbies, commercial supermarkets, or creative displays in entertainment venues, it can be easily realized.
Various special forms

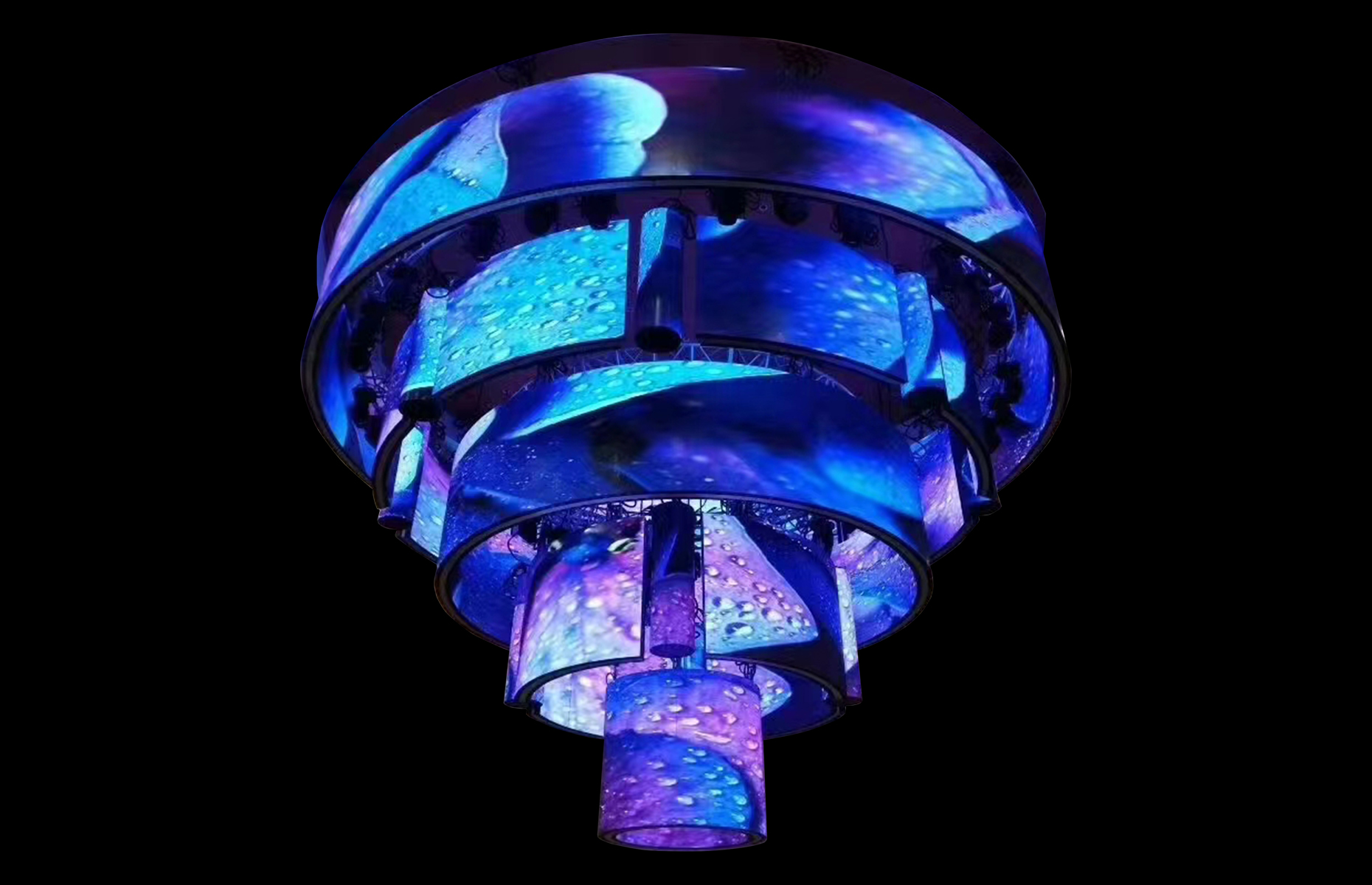

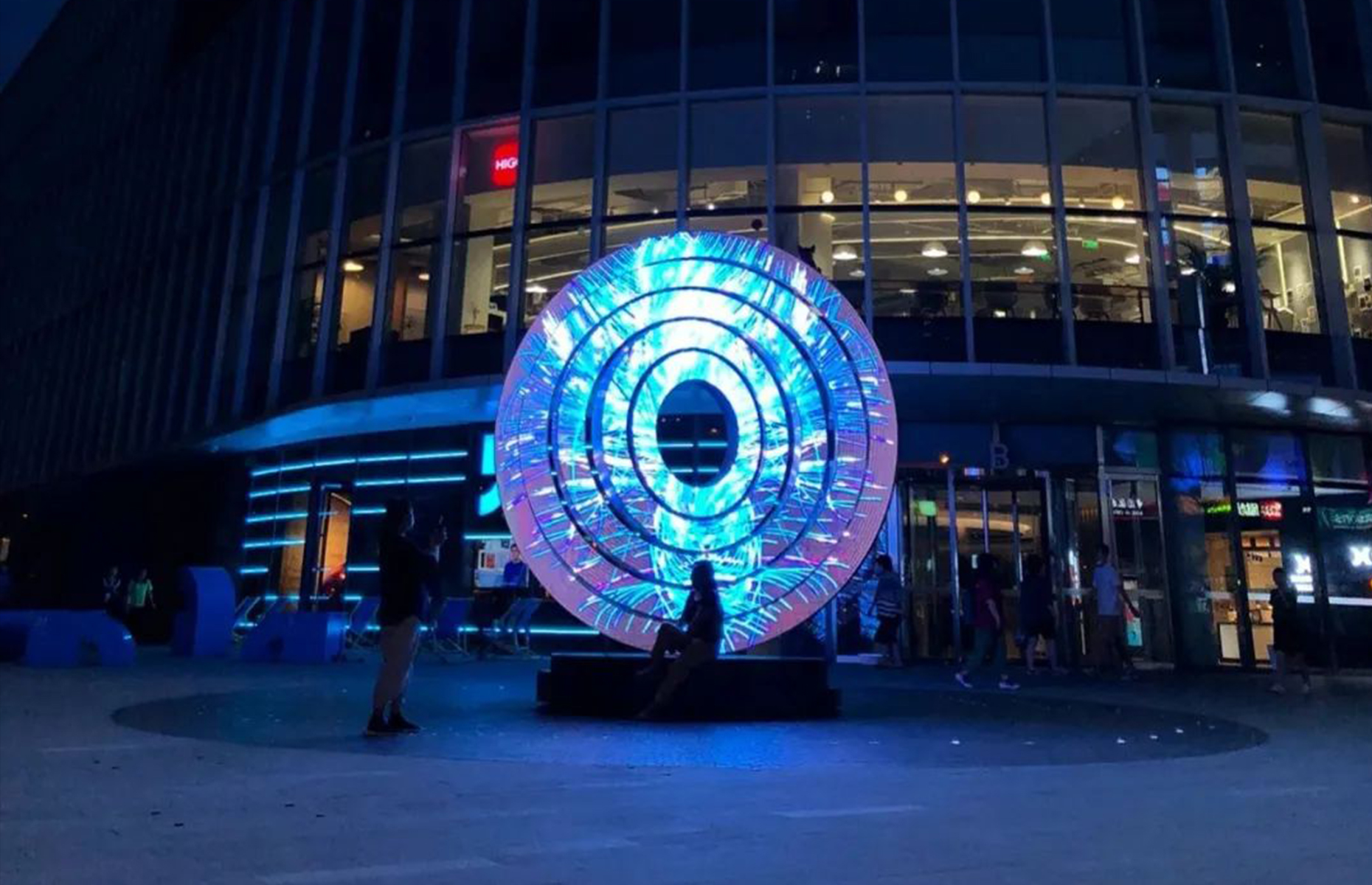

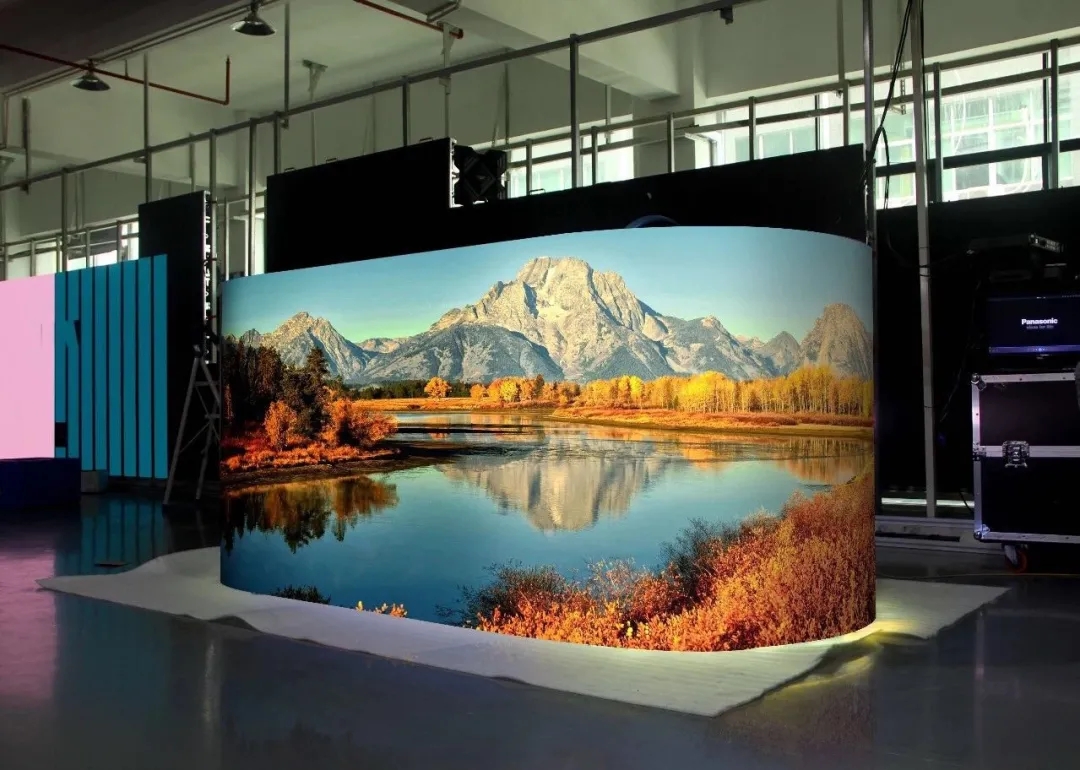

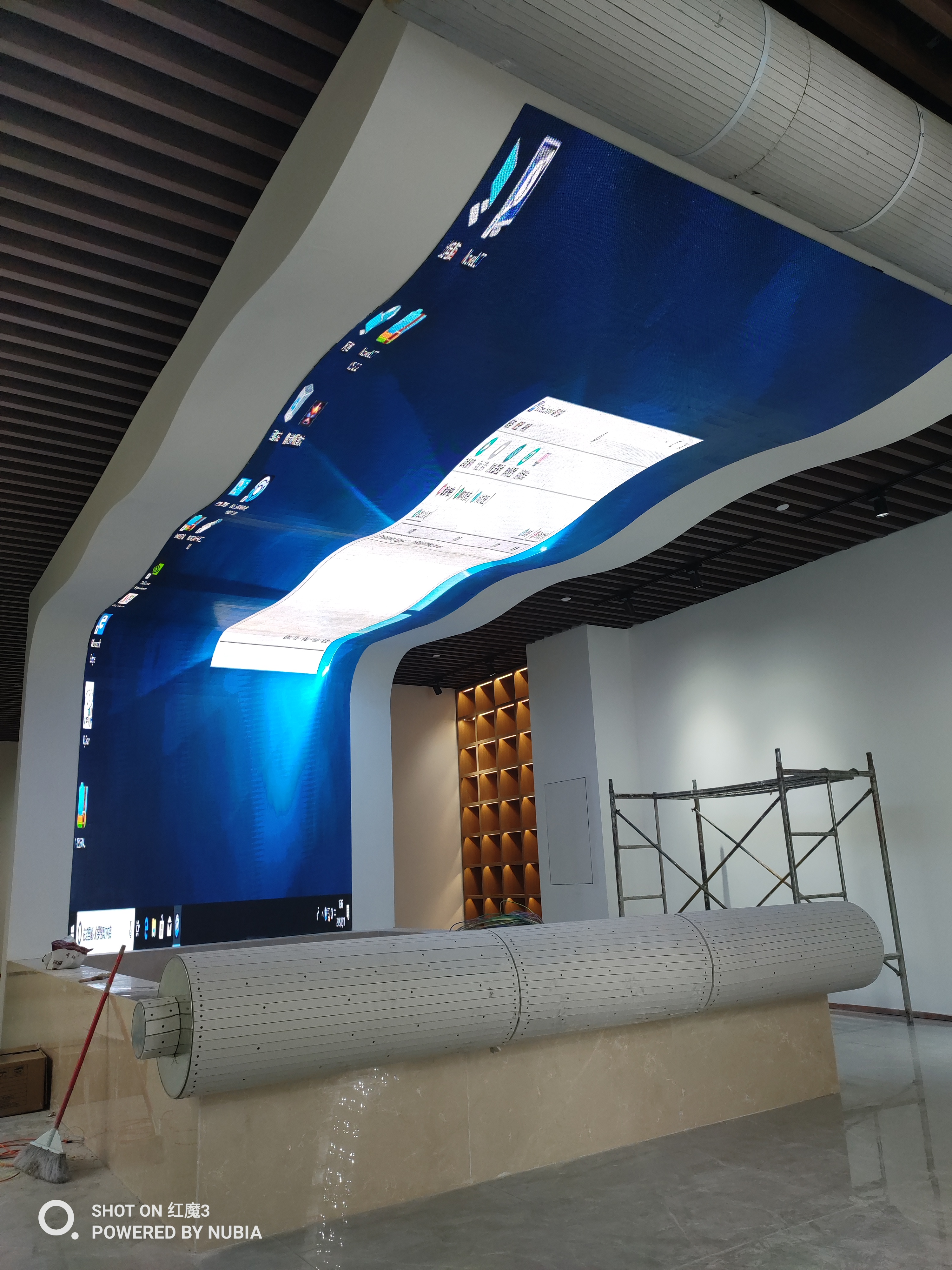

LED soft modules are not limited to traditional flat displays, they can be used in various special forms of displays, such as cylindrical, wavy, etc. This versatility and customization means it can function well in different environments and become an eye-catching feature.

Parameter

Model	P1.5	P2	P2.5	P4	P6
Pixel Pitch (mm)	1.5	2	2.5	4	6
Pixel Composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD1212	SMD1212	SMD2121	SMD2121	SMD2121
Pixel Density (dots/㎡)	444,443	250,000	160,000	62,500	27,777
Scanning Method	1/32	1/32	1/32	1/32	1/32
Brightness (cd/㎡)	≥1,000	≥1,000	≥1,000	≥1,000	≥1,000
Avg power consumption (w/㎡)	250-300	250-300	250-300	250-300	250-300
Max power consumption (w/㎡)	≤550	≤550	≤550	≤550	≤600
Viewing distance (m)	4	4	4	4	6
Refresh Rate (Hz)	960-5000
Size (m)	Customizable
Life span	≥1,000,000 hours
Mtbf	≥10,000 hours
Discrete out of control point (%)	<0.0001%
