Transparent LED Display

The transparent LED display is a kind of display with transparent characteristics made by LED technology. It is characterized by high transparency, wide viewing angle, high brightness and high contrast compared with the traditional LED display. Its unique transparency and high-definition display effect make the product display and advertising more eye-catching. Therefore, it is widely used in commercial advertisements, shopping mall displays, product displays, museum exhibitions, stage performances and other fields.It is the highly distinctive Creative LED display.

Unique visual effect
The transparent LED displays utilize side-illuminated display technology, making the light bar virtually invisible when viewed from the front, thus dramatically increasing the transmittance rate. The transmittance of the transparent LED display can be adjusted between 50% and 90%, ensuring that the content is displayed without affecting the lighting of the building. At the same time, the transparent LED display has high brightness, high definition and high contrast display effect, which can present high quality image and video content. Coupled with its transparent characteristics, the display content can be integrated with the background environment, thus presenting a unique visual effect.
Thin and light design for flexible installation
The main board of a transparent LED display is usually only about 1cm thick and is relatively lightweight. This makes the transparent LED display in the installation of glass curtain walls and other buildings on the structural load requirements are small, but also almost no space. Moreover, the transparent LED display has a flexible structural design, and the installation process is simple and fast. It can be customized according to the specific needs of the building for installation, and the installation is completed almost does not affect the overall appearance of the building.
Energy saving and easy maintenance
The transparent LED display is characterized by low power consumption, no noise, high efficiency, without additional heat dissipation equipment. Compared with traditional lighting fixtures, the energy saving of transparent LED display can be as high as 30% or more, which also reduces the impact on the environment. And when a certain LED strip on the transparent LED display is damaged, only a single strip needs to be replaced, without replacing the whole module. The maintenance process can be done indoors, which is highly efficient and low cost.
Wide range of applications

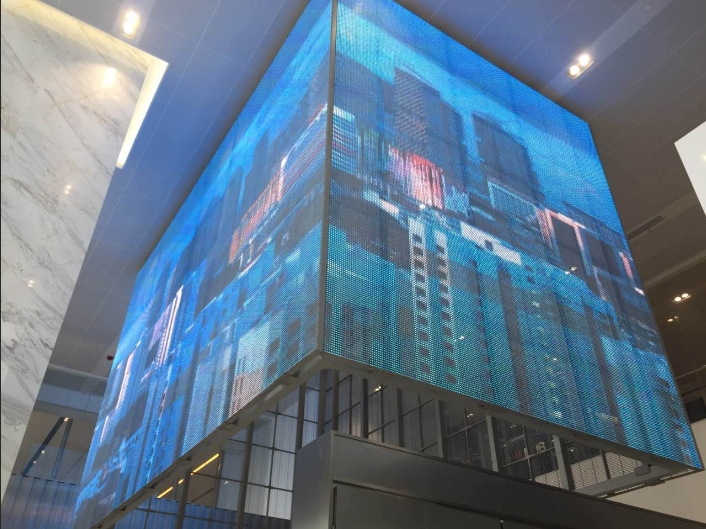

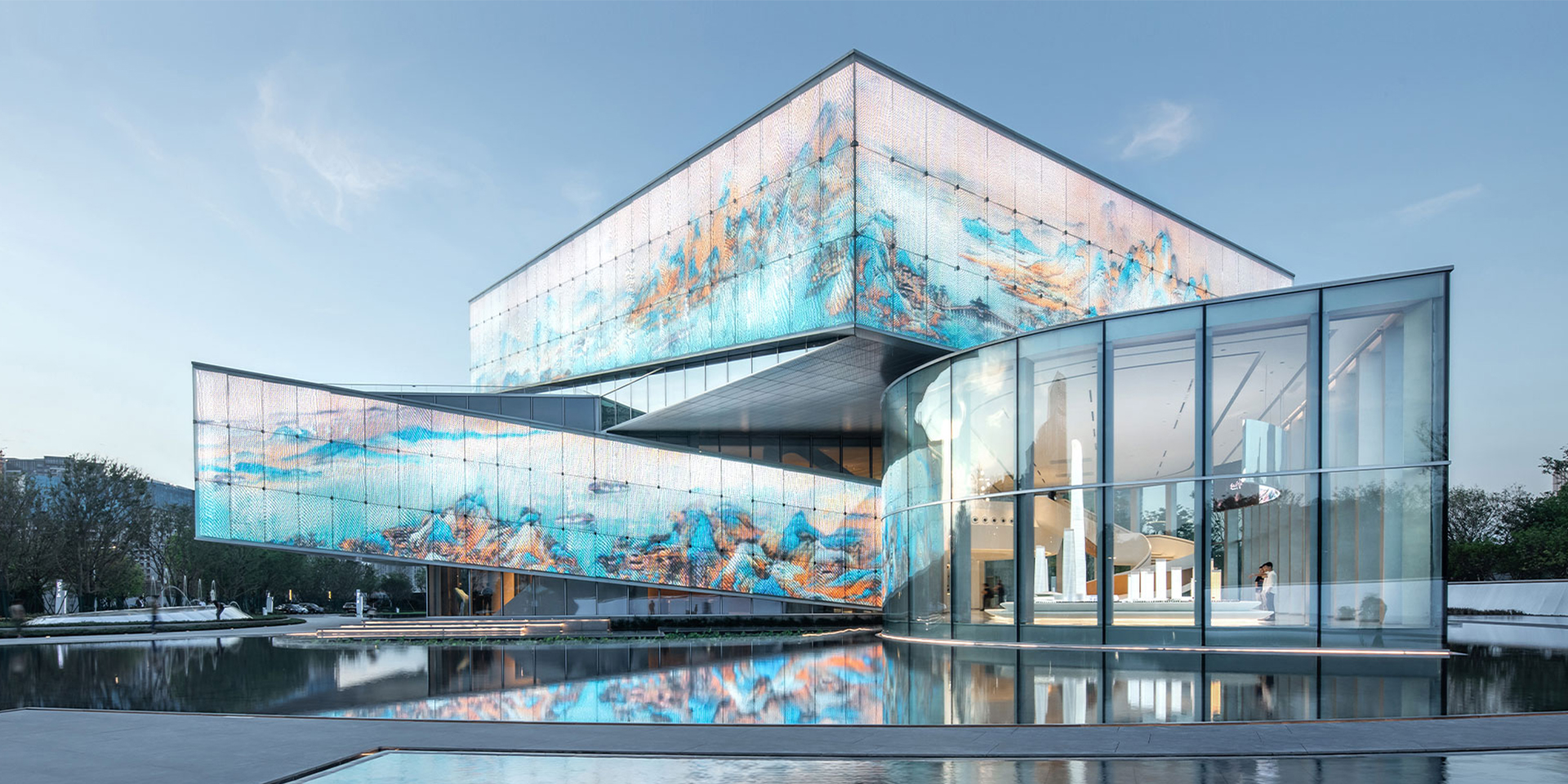

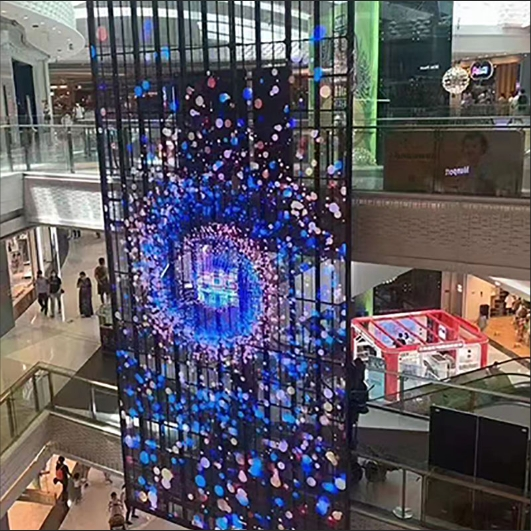

Due to its unique transparency and high-definition display effect, the transparent LED display is widely used in commercial advertisement, shopping mall display, product display, museum exhibition, stage performance and other fields, which attracts a lot of audience's attention and becomes the highlight in various scenes.

Parameter

Model	L Pro / F Pro 2.6	L Pro / F Pro 2.9	L Pro / F Pro 3.9	Pro / F Pro 4.8
Pixel Pitch (mm)	2.6	2.98	3.91	4.81
Pixel Matrix Per Sq.m	147,456	112,896	65,536	43,264
Pixel Configuration	SMD1515 / 1415	SMD2121 / 1415	SMD2121 / 1921	SMD2121 / 1921
Scan	1/32	1/21	1/16	1/13
Brightness (cd/㎡)	1000 / 4000
Module Dimension	250 x 500mm
Cabinet Dimension	LPro -- 500 x 500mm / FPro -- 500 x 1000mm
Cabinet Material	Die Casting Aluminum
Cabinet Weight	LPro -- 8KG / F Pro -- 14KG
Power Con. (W/㎡) (Max/Avg)	800W / 200 - 300W
Service Access	Front / Rear
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	≥216
Viewing Angle (H/V)	160° / 160°
IP Rate	IP43 / IP65
Input Voltage (Ac)	110V / 240V
