Project Overview:

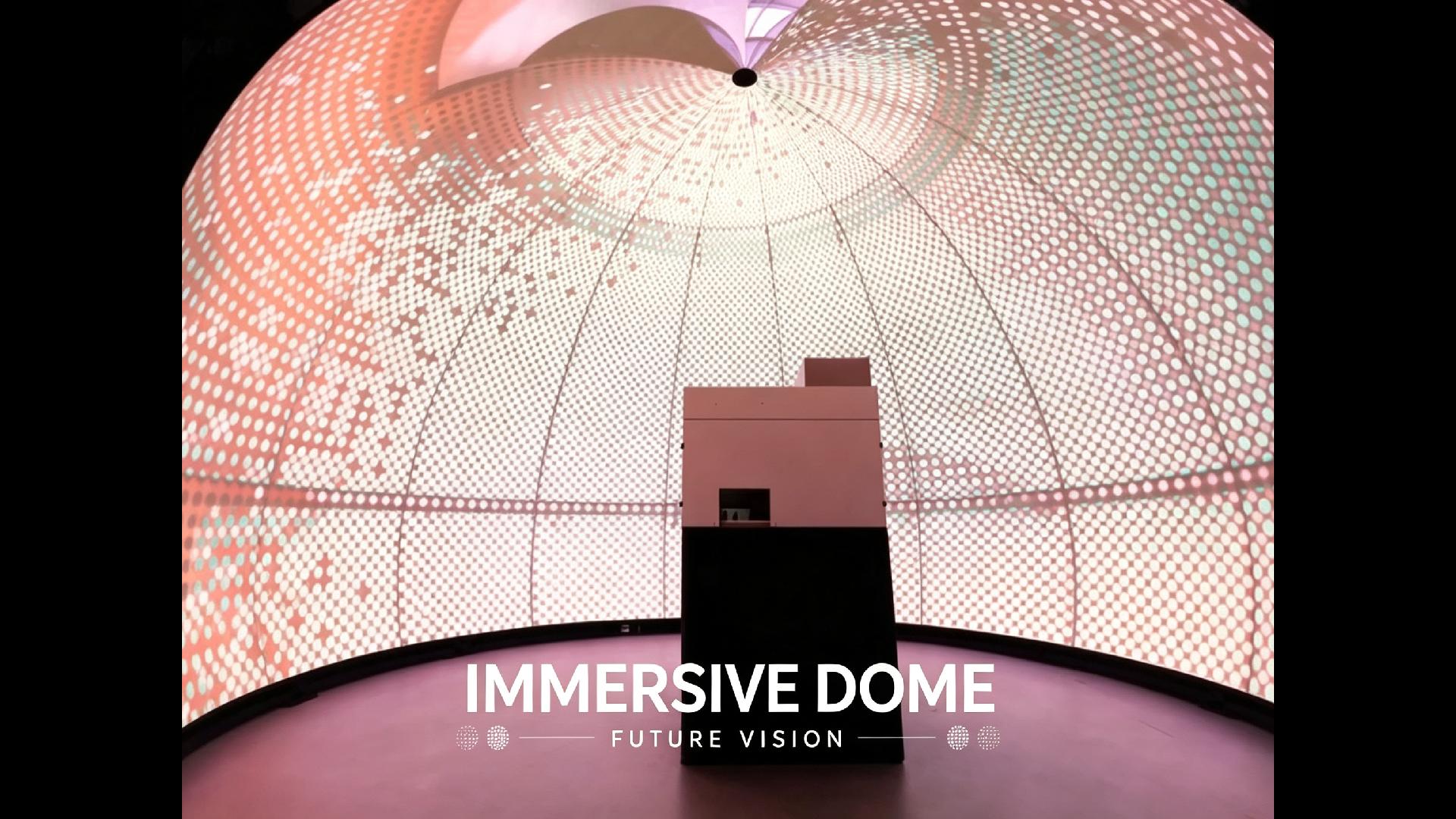

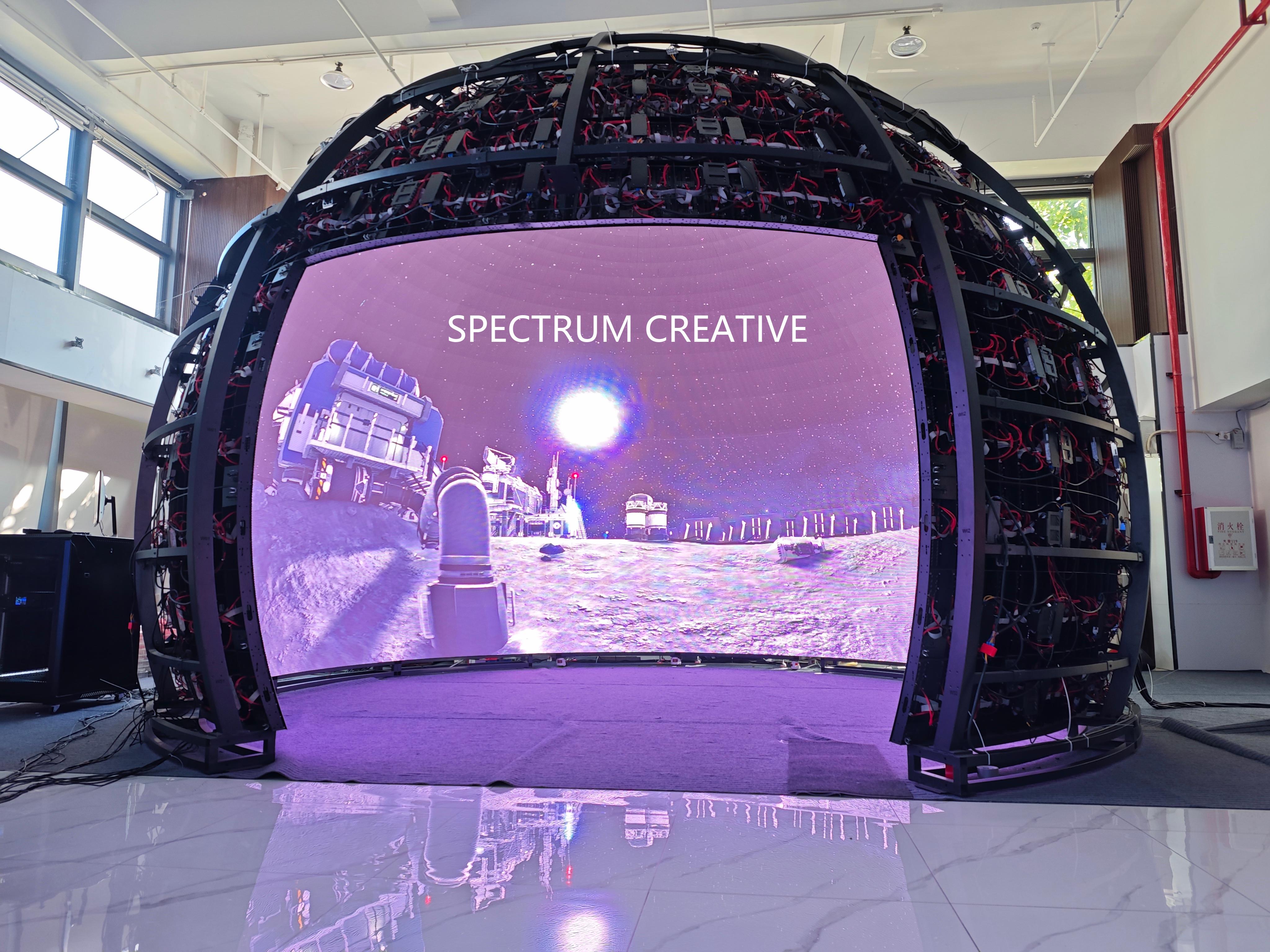

We have custom-built a 6-meter diameter (6.5m including structure), 72㎡ RGBW inner-dome screen for a top-tier research institution in Austria. Featuring a native RGBW architecture, this project achieves a peak brightness of 17,000 nits and research-grade color accuracy. It is more than just an immersive display terminal; it is a full-spectrum physical simulator capable of mimicking the precise trajectory of the sun.
The laboratory requirements of this research client went far beyond conventional commercial displays. They needed a "sky" capable of simulating full-spectrum lighting—from sunrise to sunset—to conduct illuminance, shadow, and daylighting tests for architectural models.
Continuous Spectrum Simulation: Solving the spectral gaps of traditional RGB displays, the customized W (White) channel restores the true texture of natural sunlight.
Extreme Color Standards: The system demands a Color Rendering Index (Ra) of ≥97 and an R9 (saturated red) value of ≥90.
Dynamic Dimming: Precise adjustment within a 2500K–10000K color temperature range, perfectly adhering to the Black Body Locus without any color shift.
In the heart of the European lighting industry, why did the client choose Spectrum Creative from Shenzhen? We provided "cross-disciplinary integration" that neither traditional lighting manufacturers nor standard display screen factories could achieve:
1. Engineering Experts in "Creative Form": Seamless Integration & Innovation
While the client excelled in optical theory, they required an expert partner for the complex engineering of large-scale inner-dome surfaces.
Fractal Geometry Design: Using mathematical fractal algorithms, we precisely mapped the module layout to fit the dome radius, eliminating the "light spot fragmentation" caused by physical seams.

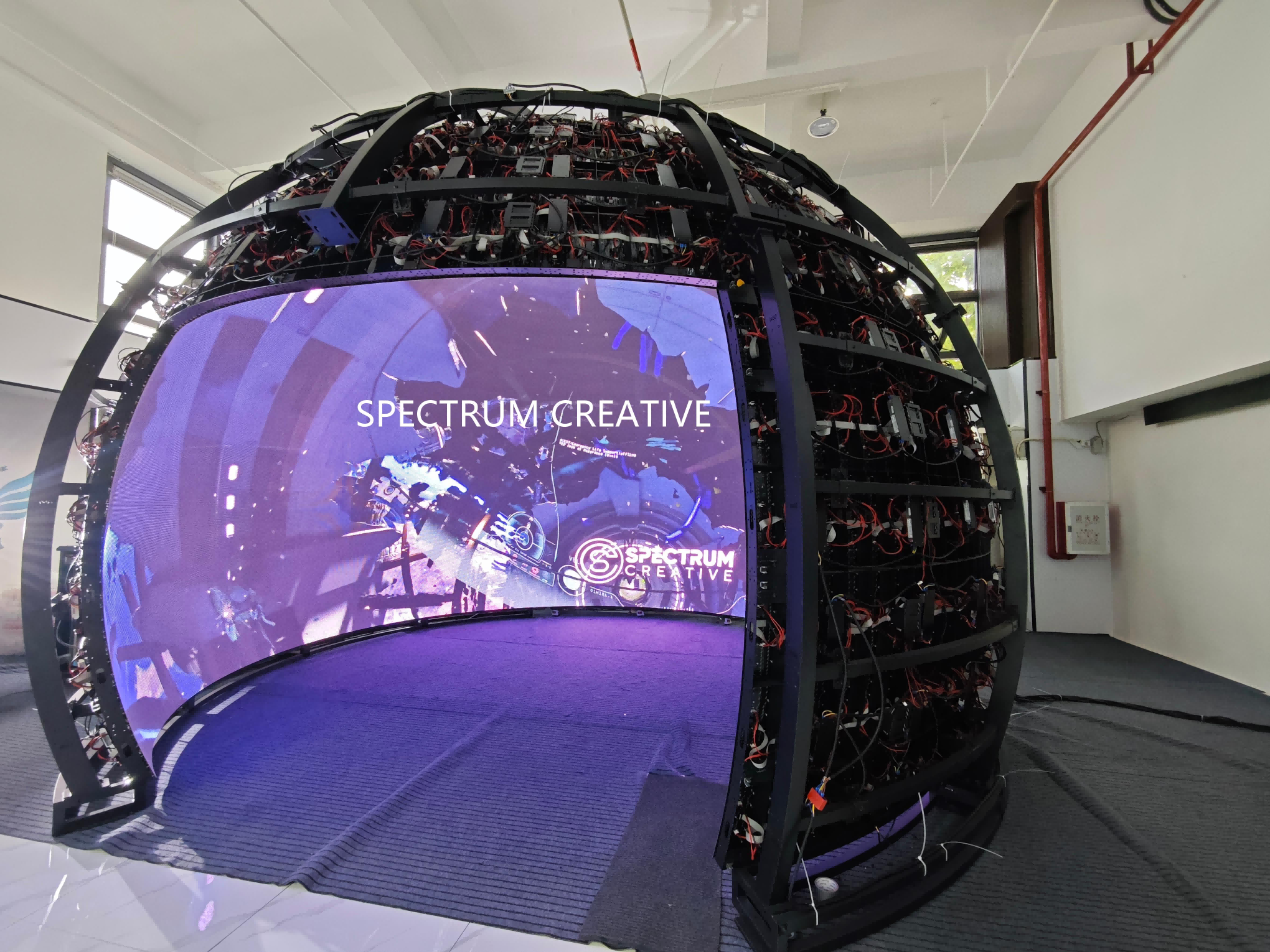

Mechanical Integration: We developed a dual-opening movable door structure with an integrated aperture at the apex, allowing the "Artificial Sun" robotic arm to pass through while maintaining display integrity and seamless image synchronization.
2. Cross-disciplinary Control Architecture: A Screen as a "Super Light Source"
High-Bandwidth AV Architecture: Traditional lighting systems (DMX/DALI) cannot handle high-refresh-rate pixel control. We utilized professional AV industry high-bandwidth control architectures to drive the dome, enabling the real-time simulation of dynamic lighting conditions like drifting clouds or shifting sunbeams.
High-Precision Color Algorithms: By leveraging our expertise in Spectrum creative, we provided customized calibration chips and algorithms to achieve a color difference (Delta E) of <1.5, far exceeding the precision standards of the lighting industry.
3. Unmatched Efficiency in Customization
Spectrum Creative offers a high-efficiency synergy, from rigorous aging tests at our factory to full-chain color calibration, significantly shortening the client's cycle from theoretical validation to physical implementation.
Brightness: 7,000 nits (White channel only), 9,000 nits (RGB peak), and 17,000 nits (RGBW combined peak).
Color Standards: Ra ≥97, TLCI ≥98, Delta E <1.5.
Grayscale: Supports 16-bit to 22-bit internal processing, ensuring smooth transitions even in extremely low-light environments without flickering.
Q1: What are the practical benefits of the RGBW solution for research simulation?
A: RGBW fills the spectral gaps of traditional RGB mixing, creating a continuous light spectrum that enables natural sunlight simulation across the 2500K–10000K range.
Q2: Why is this dome considered a "composite" product?
A: We have broken the boundaries between display and lighting. It functions simultaneously as a high-resolution video screen and a high-CRI physical light source.
Q3: Does the physical structure (doors/mechanical arm apertures) affect the display?
A: Not at all. Through software iteration and structural optimization, we ensured content displays normally across physical doors, with calibration algorithms maintaining visual continuity.
Spectrum Creative summarizes the core of this partnership: "The client possesses the world’s most brilliant optical brain, and we provided the perfect 'skin' (engineering structure) and 'nervous system' (control system) to bring that vision to reality."
